TPA3123 Series

25-W stereo, 10- to 30-V supply, analog input Class-D audio amplifier w/ SE outputs

Catalog

25-W stereo, 10- to 30-V supply, analog input Class-D audio amplifier w/ SE outputs

Part	Mounting Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Operating Temperature (Max)	Operating Temperature (Min)	Package Width	Package Name	Package Length	Output Type	Type	Channels	Load Impedance	Maximum Output Power (per Channel)	Features	Supplied Contents	Board Type	Amplifier Type	Contents	Utilized IC / Part
Texas Instruments TPA3123D2PWP	Surface Mount	10 VDC	30 VDC	85 °C	-40 °C	4.4 mm	24-HTSSOP 24-PowerTSSOP	0.173 in	2-Channel (Stereo)	Class D	2	4 Ohm	25 W	Depop Mute Short-Circuit and Thermal Protection Shutdown
Texas Instruments TPA3123D2PWPG4	Surface Mount	10 VDC	30 VDC	85 °C	-40 °C	4.4 mm	24-HTSSOP 24-PowerTSSOP	0.173 in	2-Channel (Stereo)	Class D	2	4 Ohm	25 W	Depop Mute Short-Circuit and Thermal Protection Shutdown

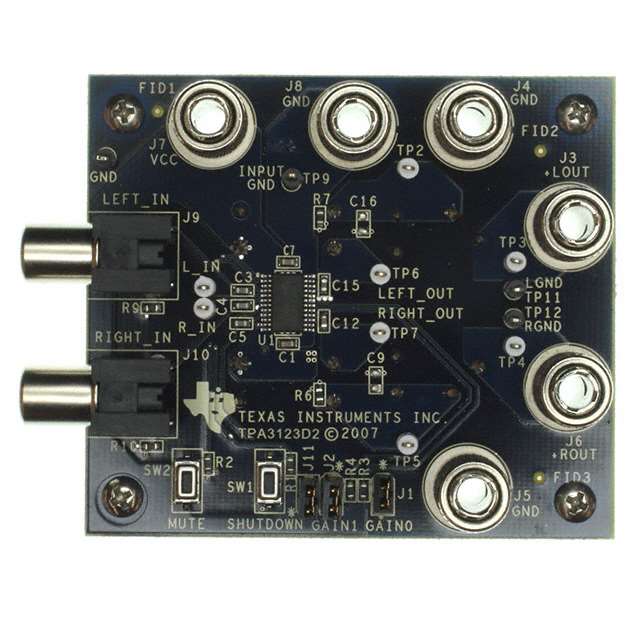

Texas Instruments TPA3123D2EVM		10 VDC	30 VDC						2-Channel (Stereo)		2	4 Ohm	25 W		Board(s)	Fully Populated	Class D	Board	TPA3123D2

Catalog

25-W stereo, 10- to 30-V supply, analog input Class-D audio amplifier w/ SE outputs

Description

The TPA3123D2 is a 25-W (per channel) efficient, Class-D audio power amplifier for driving stereo speakers in a single-ended configuration or a mono speaker in a bridge-tied-load configuration. The TPA3123D2 can drive stereo speakers as low as 4. The efficiency of the TPA3123D2 eliminates the need for an external heat sink when playing music. The gain of the amplifier is controlled by two gain select pins. The gain selections are 20, 26, 32, 36 dB. The patented start-up and shut-down sequences minimizepopnoise in the speakers without additional circuitry. The TPA3123D2 is a 25-W (per channel) efficient, Class-D audio power amplifier for driving stereo speakers in a single-ended configuration or a mono speaker in a bridge-tied-load configuration. The TPA3123D2 can drive stereo speakers as low as 4. The efficiency of the TPA3123D2 eliminates the need for an external heat sink when playing music. The gain of the amplifier is controlled by two gain select pins. The gain selections are 20, 26, 32, 36 dB. The patented start-up and shut-down sequences minimizepopnoise in the speakers without additional circuitry.
