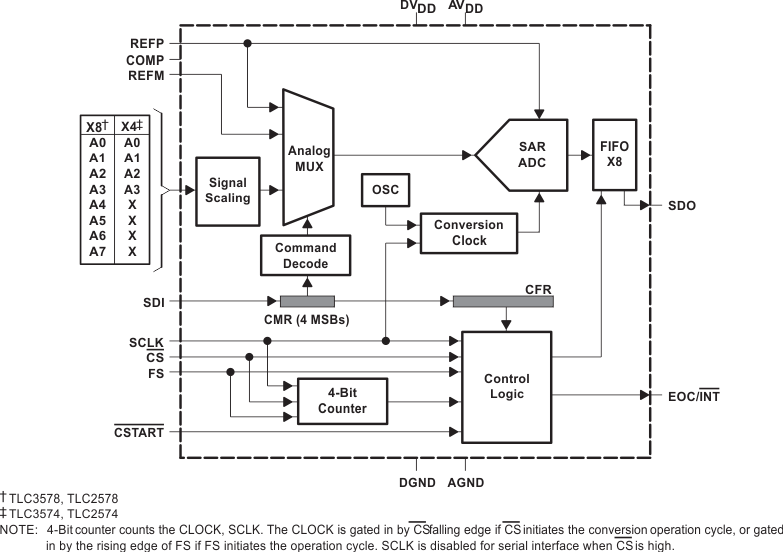

TLC3578 Series

Catalog

SERIAL OUT, LOW POWER WITH BUILT-IN CONVERSION CLOCK & 8X FIFO, 8-CHANNEL, ±1 LSB INL

Part	Voltage - Supply, Analog	Number of Bits	Data Interface	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Input Type	Architecture	Sampling Rate (Per Second)	Package Name	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Configuration	Package Width	Package Length	Reference Type	Number of Inputs	Ratio - ADC	Ratio - S/H	Number of A/D Converters
Texas Instruments TLC3578IPWR	5 V	14 bits	SPI	-40 °C	85 °C	Surface Mount	Pseudo-Differential Single Ended	SAR	200 kHz	24-TSSOP	2.7 V	5.5 V	MUX-S/H-ADC	4.4 mm	0.173 in	External	4 8	1	1	1 count
Texas Instruments TLC3578IDWG4	5 V	14 bits	SPI	-40 °C	85 °C	Surface Mount	Pseudo-Differential Single Ended	SAR	200 kHz	24-SOIC	2.7 V	5.5 V	MUX-S/H-ADC	7.5 mm	0.295 in	External	4 8	1	1	1 count
Texas Instruments TLC3578IDWR	5 V	14 bits	SPI	-40 °C	85 °C	Surface Mount	Pseudo-Differential Single Ended	SAR	200 kHz	24-SOIC	2.7 V	5.5 V	MUX-S/H-ADC	7.5 mm	0.295 in	External	4 8	1	1	1 count
Texas Instruments TLC3578IPW	5 V	14 bits	SPI	-40 °C	85 °C	Surface Mount	Pseudo-Differential Single Ended	SAR	200 kHz	24-TSSOP	2.7 V	5.5 V	MUX-S/H-ADC	4.4 mm	0.173 in	External	4 8	1	1	1 count
Texas Instruments TLC3578IDW	5 V	14 bits	SPI	-40 °C	85 °C	Surface Mount	Pseudo-Differential Single Ended	SAR	200 kHz	24-SOIC	2.7 V	5.5 V	MUX-S/H-ADC	7.5 mm	0.295 in	External	4 8	1	1	1 count
