ERF8-013 Series

Catalog

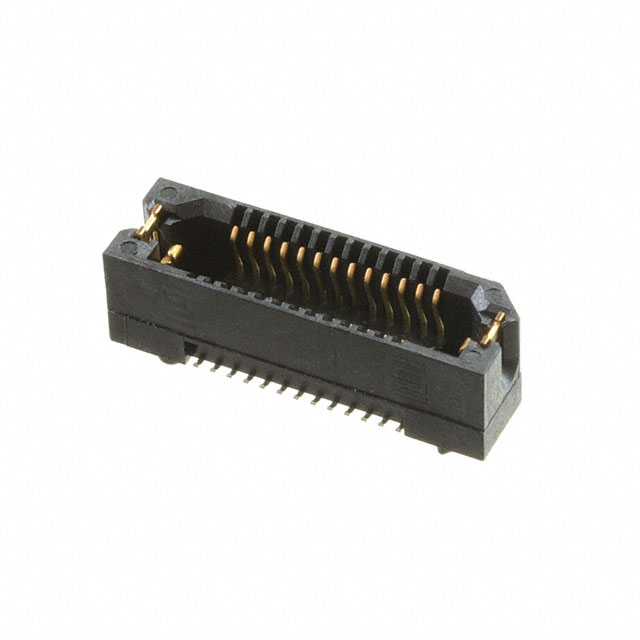

CONN SOCKET 26POS SMD GOLD

Part	Mounting Type	Contact Finish	Connector Type	Features	Number of Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Height Above Board	Height Above Board
Samtec Inc. ERF8-013-07.0-L-DV-TR	Surface Mount	Gold	Outer Shroud Contacts Socket	Board Guide	2	26	10 Áin	0.25 Ám	0.8 mm	0.031 in	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm
Samtec Inc. ERF8-013-01-L-D-EM2-TR	Board Edge Straddle Mount	Gold	Outer Shroud Contacts Socket		2	26	10 Áin	0.25 Ám	0.8 mm	0.031 in
Samtec Inc. ERF8-013-07.0-S-DV-EGP-K-TR	Surface Mount	Gold	Outer Shroud Contacts Socket	Board Guide Pick and Place	2	26	30 Áin	0.76 Ám	0.8 mm	0.031 in	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm
Samtec Inc. ERF8-013-07.0-S-DV-K-TR	Surface Mount	Gold	Outer Shroud Contacts Socket	Board Guide Pick and Place	2	26	30 Áin	0.76 Ám	0.8 mm	0.031 in	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm
Samtec Inc. ERF8-013-07.0-S-DV-EGP-TR	Surface Mount	Gold	Outer Shroud Contacts Socket	Board Guide	2	26	30 Áin	0.76 Ám	0.8 mm	0.031 in	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm
Samtec Inc. ERF8-013-05.0-S-DV-K-TR	Surface Mount	Gold	Outer Shroud Contacts Socket	Board Guide Pick and Place	2	26	30 Áin	0.76 Ám	0.8 mm	0.031 in	7 mm 10 mm 13 mm 14 mm 20 mm			0.21 in	5.33 mm
Samtec Inc. ERF8-013-05.0-L-DV-L-TR	Surface Mount	Gold	Outer Shroud Contacts Socket	Board Guide Latches	2	26	10 Áin	0.25 Ám	0.8 mm	0.031 in	7 mm 10 mm 13 mm 14 mm 20 mm			0.21 in	5.33 mm
Samtec Inc. ERF8-013-03-L-D-RA-TR	Surface Mount Right Angle	Gold	Outer Shroud Contacts Socket	Board Guide Mounting Flange	2	26	10 Áin	0.25 Ám	0.8 mm	0.031 in				0.246 in	6.25 mm
Samtec Inc. ERF8-013-07.0-S-DV-TR	Surface Mount	Gold	Outer Shroud Contacts Socket	Board Guide	2	26	30 Áin	0.76 Ám	0.8 mm	0.031 in	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm
Samtec Inc. ERF8-013-01-S-D-RA-EGP-TR	Surface Mount Right Angle	Gold	Outer Shroud Contacts Socket	Board Guide Mounting Flange	2	26	30 Áin	0.76 Ám	0.8 mm	0.031 in				0.246 in	6.25 mm
