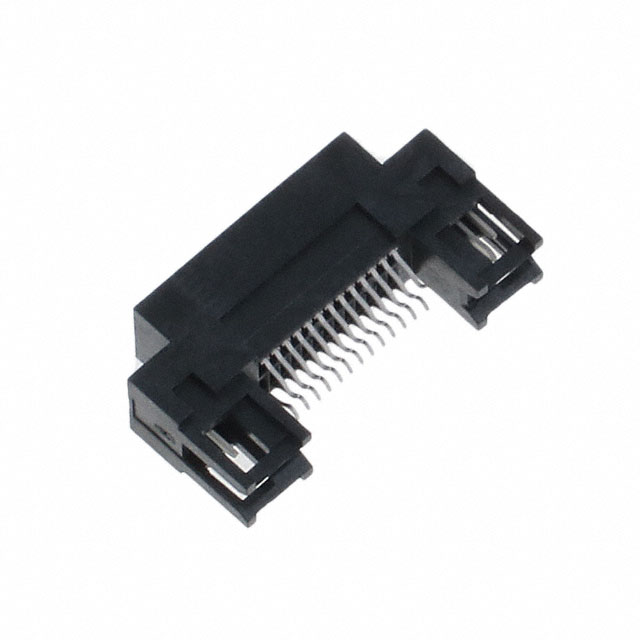

ERF8-013-01-L-D-EM2-TR

Active

Samtec Inc.

CONN SOCKET 26POS EDGE MNT GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsERF8 Series Other Related Documents 03 ERF8 Series Other Related Documents 01 +1

ERF8-013-01-L-D-EM2-TR

Active

Samtec Inc.

CONN SOCKET 26POS EDGE MNT GOLD

Deep-Dive with AI

DocumentsERF8 Series Other Related Documents 03 ERF8 Series Other Related Documents 01 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERF8-013-01-L-D-EM2-TR

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Mounting Type	Board Edge, Straddle Mount
Number of Positions	26
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERF8-013 Series

Part	Mounting Type	Contact Finish	Connector Type	Features	Number of Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Height Above Board	Height Above Board
Samtec Inc. ERF8-013-07.0-L-DV-TR	Surface Mount	Gold	Outer Shroud Contacts Socket	Board Guide	2	26	10 Áin	0.25 Ám	0.8 mm	0.031 in	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm
Samtec Inc. ERF8-013-01-L-D-EM2-TR	Board Edge Straddle Mount	Gold	Outer Shroud Contacts Socket		2	26	10 Áin	0.25 Ám	0.8 mm	0.031 in
Samtec Inc. ERF8-013-07.0-S-DV-EGP-K-TR	Surface Mount	Gold	Outer Shroud Contacts Socket	Board Guide Pick and Place	2	26	30 Áin	0.76 Ám	0.8 mm	0.031 in	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm
Samtec Inc. ERF8-013-07.0-S-DV-K-TR	Surface Mount	Gold	Outer Shroud Contacts Socket	Board Guide Pick and Place	2	26	30 Áin	0.76 Ám	0.8 mm	0.031 in	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm
Samtec Inc. ERF8-013-07.0-S-DV-EGP-TR	Surface Mount	Gold	Outer Shroud Contacts Socket	Board Guide	2	26	30 Áin	0.76 Ám	0.8 mm	0.031 in	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm
Samtec Inc. ERF8-013-05.0-S-DV-K-TR	Surface Mount	Gold	Outer Shroud Contacts Socket	Board Guide Pick and Place	2	26	30 Áin	0.76 Ám	0.8 mm	0.031 in	7 mm 10 mm 13 mm 14 mm 20 mm			0.21 in	5.33 mm
Samtec Inc. ERF8-013-05.0-L-DV-L-TR	Surface Mount	Gold	Outer Shroud Contacts Socket	Board Guide Latches	2	26	10 Áin	0.25 Ám	0.8 mm	0.031 in	7 mm 10 mm 13 mm 14 mm 20 mm			0.21 in	5.33 mm
Samtec Inc. ERF8-013-03-L-D-RA-TR	Surface Mount Right Angle	Gold	Outer Shroud Contacts Socket	Board Guide Mounting Flange	2	26	10 Áin	0.25 Ám	0.8 mm	0.031 in				0.246 in	6.25 mm
Samtec Inc. ERF8-013-07.0-S-DV-TR	Surface Mount	Gold	Outer Shroud Contacts Socket	Board Guide	2	26	30 Áin	0.76 Ám	0.8 mm	0.031 in	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm
Samtec Inc. ERF8-013-01-S-D-RA-EGP-TR	Surface Mount Right Angle	Gold	Outer Shroud Contacts Socket	Board Guide Mounting Flange	2	26	30 Áin	0.76 Ám	0.8 mm	0.031 in				0.246 in	6.25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.32
		25	$ 3.86
		50	$ 3.55
	Digi-Reel®	1	$ 7.37
		10	$ 6.66
		25	$ 6.29
		50	$ 6.14
	Tape & Reel (TR)	150	$ 5.83
		300	$ 5.22
		450	$ 4.91
		750	$ 4.61
		1050	$ 4.30
		1500	$ 4.21

Description

General part information

ERF8-013 Series

26 Position Connector Socket, Outer Shroud Contacts Board Edge, Straddle Mount Gold
