ADS1293 Series
Manufacturer: Texas Instruments
Beta
⌘K
24-BIT, 3-CH, LOW-POWER ANALOG FRONT END (AFE) FOR ECG APPLICATIONS
| Part | Number of Channels | Voltage - Supply, Analog (Min) | Voltage - Supply, Analog (Max) | Voltage - Supply, Digital (Min) | Voltage - Supply, Digital (Max) | Number of Bits | Mounting Type | Package Length | Package Name | Package Width | Package / Case | Supplied Contents | Type | Utilized IC / Part | Contents | Embedded Bit Width | Embedded | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 3 | 2.7 V | 5.5 V | 1.65 V | 3.6 V | 24 bits | Surface Mount | 5 mm | 28-WQFN | 5 mm | 28-WFQFN Exposed Pad | |||||||

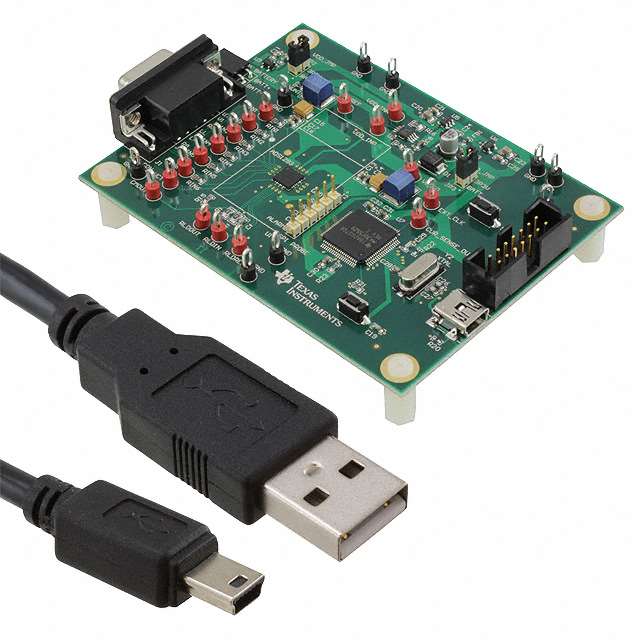

 Texas Instruments | Board(s) Cable(s) | Interface | ADS1293 | Board Cable | 16 bit | MCU Yes | Analog Front End (AFE) for ECG EKG | |||||||||||
Texas Instruments | 3 | 2.7 V | 5.5 V | 1.65 V | 3.6 V | 24 bits | Surface Mount | 5 mm | 28-WQFN | 5 mm | 28-WFQFN Exposed Pad | |||||||
 Texas Instruments | 3 | 2.7 V | 5.5 V | 1.65 V | 3.6 V | 24 bits | Surface Mount | 5 mm | 28-WQFN | 5 mm | 28-WFQFN Exposed Pad |
