MSP430F67621 Series

Catalog

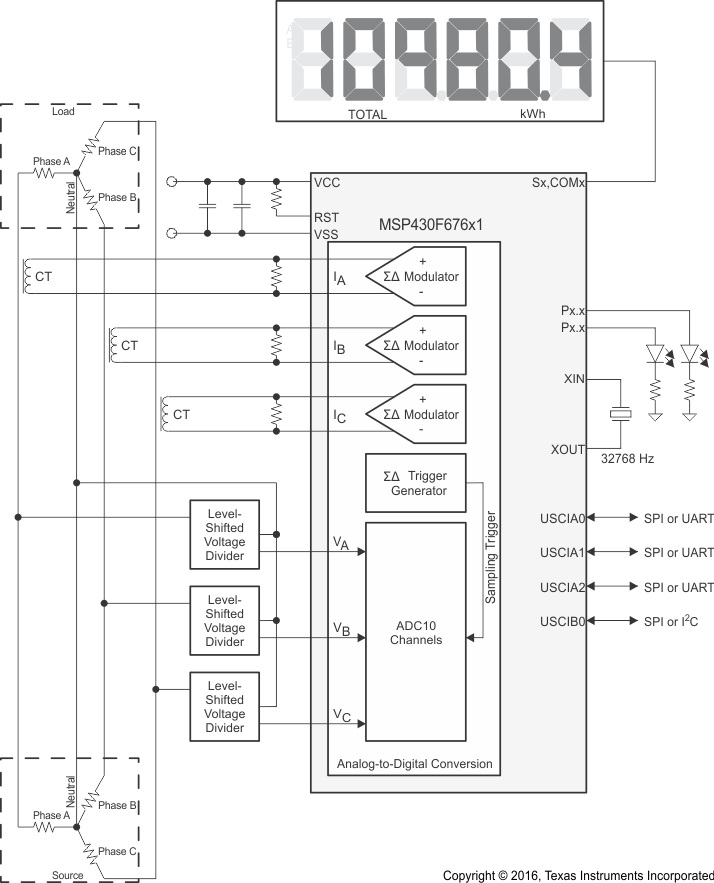

LOW-COST POLYPHASE METERING SOC WITH 3 SIGMA-DELTA ADCS, 10-BIT SAR ADC, LCD, 64KB FLASH, 4KB RAM

Part	Connectivity	Program Memory Depth	Program Memory Width	Program Memory Size	Operating Temperature (Max)	Operating Temperature (Min)	Number of I/O	Speed	RAM Size Depth	RAM Size Width	Package / Case	Core Processor	Mounting Type	Program Memory Type	Peripherals	Package Length	Package Name	Package Width	Oscillator Type	A/D Channels	A/D Resolution (bits)	Core Size (Bit Width)	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum
Texas Instruments MSP430F67621IPNR	I2C IrDA SPI UART USART	64 K	8 bit	64 KB	85 °C	-40 °C	52	25 MHz	4 K	8 bit	80-LQFP	MSP430 CPUXV2	Surface Mount	FLASH	3x24b Sigma Delta Converter Brown-out Detect DMA LCD POR PWM Reset WDT	12 mm	80-LQFP	12 mm	Internal	8 count	10 bit	16 Bit	3.6 V	1.8 V
Texas Instruments MSP430F67621AIPZ	I2C IrDA SPI UART USART	64 K	8 bit	64 KB	85 °C	-40 °C	72	25 MHz	4 K	8 bit	100-LQFP	MSP430 CPUXV2	Surface Mount	FLASH	3x24b Sigma Delta Converter Brown-out Detect DMA LCD POR PWM Reset WDT	14 mm	100-LQFP	14 mm	Internal	8 count	10 bit	16 Bit	3.6 V	1.8 V
Texas Instruments MSP430F67621AIPNR	I2C IrDA SPI UART USART	64 K	8 bit	64 KB	85 °C	-40 °C	52	25 MHz	4 K	8 bit	80-LQFP	MSP430 CPUXV2	Surface Mount	FLASH	3x24b Sigma Delta Converter Brown-out Detect DMA LCD POR PWM Reset WDT	12 mm	80-LQFP	12 mm	Internal	8 count	10 bit	16 Bit	3.6 V	1.8 V
Texas Instruments MSP430F67621IPZ	I2C IrDA SPI UART USART	64 K	8 bit	64 KB	85 °C	-40 °C	72	25 MHz	4 K	8 bit	100-LQFP	MSP430 CPUXV2	Surface Mount	FLASH	3x24b Sigma Delta Converter Brown-out Detect DMA LCD POR PWM Reset WDT	14 mm	100-LQFP	14 mm	Internal	8 count	10 bit	16 Bit	3.6 V	1.8 V
Texas Instruments MSP430F67621AIPZR	I2C IrDA SPI UART USART	64 K	8 bit	64 KB	85 °C	-40 °C	72	25 MHz	4 K	8 bit	100-LQFP	MSP430 CPUXV2	Surface Mount	FLASH	3x24b Sigma Delta Converter Brown-out Detect DMA LCD POR PWM Reset WDT	14 mm	100-LQFP	14 mm	Internal	8 count	10 bit	16 Bit	3.6 V	1.8 V
Texas Instruments MSP430F67621AIPN	I2C IrDA SPI UART USART	64 K	8 bit	64 KB	85 °C	-40 °C	52	25 MHz	4 K	8 bit	80-LQFP	MSP430 CPUXV2	Surface Mount	FLASH	3x24b Sigma Delta Converter Brown-out Detect DMA LCD POR PWM Reset WDT	12 mm	80-LQFP	12 mm	Internal	8 count	10 bit	16 Bit	3.6 V	1.8 V
Texas Instruments MSP430F67621IPN	I2C IrDA SPI UART USART	64 K	8 bit	64 KB	85 °C	-40 °C	52	25 MHz	4 K	8 bit	80-LQFP	MSP430 CPUXV2	Surface Mount	FLASH	3x24b Sigma Delta Converter Brown-out Detect DMA LCD POR PWM Reset WDT	12 mm	80-LQFP	12 mm	Internal	8 count	10 bit	16 Bit	3.6 V	1.8 V
Texas Instruments MSP430F67621IPZR	I2C IrDA SPI UART USART	64 K	8 bit	64 KB	85 °C	-40 °C	72	25 MHz	4 K	8 bit	100-LQFP	MSP430 CPUXV2	Surface Mount	FLASH	3x24b Sigma Delta Converter Brown-out Detect DMA LCD POR PWM Reset WDT	14 mm	100-LQFP	14 mm	Internal	8 count	10 bit	16 Bit	3.6 V	1.8 V
