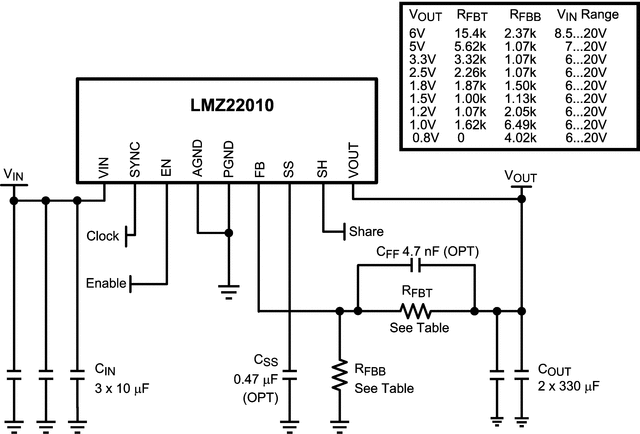

LMZ22010 Series

Catalog

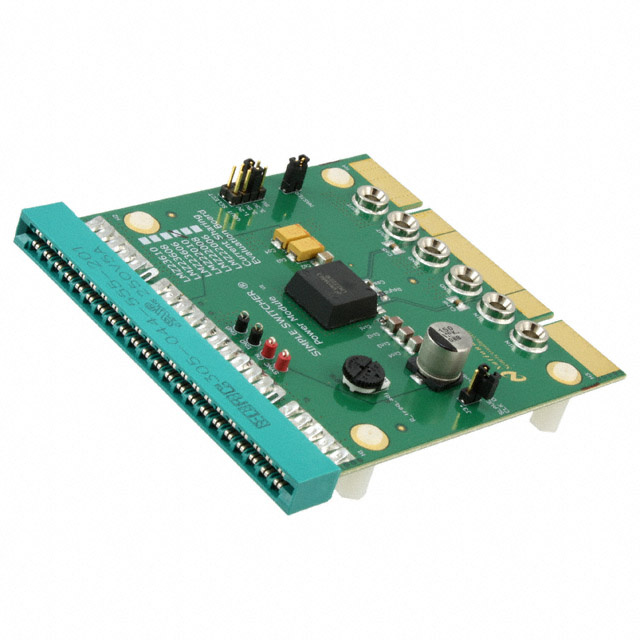

BOARD EVAL PWR MOD LMZ22010

Part	Total Output Count	Output Type	Non-Isolated Output Count	Supplied Contents	Board Type	Frequency - Switching	Regulator Topology	Voltage - Output (4)	Voltage - Output (3)	Voltage - Output (1)	Voltage - Output (2)	Contents	Utilized IC / Part	Current - Output	Main Purpose	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Voltage - Input (Min)	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Package / Case	Type	Number of Outputs	Voltage - Input (Max)	Current - Output (Max)	Voltage - Output 1 (Min)	Voltage - Output 1 (Max)	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Features	Efficiency	Mounting Type
Texas Instruments LMZ22010EVAL/NOPB	1	Non-Isolated	1 count	Board(s)	Fully Populated	359 kHz	Buck	5 V	3.3 V	1.2 V	2.5 V	Board	LMZ22010	10 A	DC/DC Step Down	6 V	20 V
Texas Instruments LMZ22010TZX/NOPB																		6 V	125 °C	-40 °C	ITE (Commercial)	Power Module TO-PMOD-11	Non-Isolated PoL Module	1	20 V	10 A	800 mV	6 V	0.59 in	0.59 in	0.23 in	UVLO	92 %	Surface Mount
Texas Instruments LMZ22010TZE/NOPB																		6 V	125 °C	-40 °C	ITE (Commercial)	Power Module TO-PMOD-11	Non-Isolated PoL Module	1	20 V	10 A	800 mV	6 V	0.59 in	0.59 in	0.23 in	UVLO	92 %	Surface Mount
Texas Instruments LMZ22010TZ/NOPB																		6 V	125 °C	-40 °C	ITE (Commercial)	Power Module TO-PMOD-11	Non-Isolated PoL Module	1	20 V	10 A	800 mV	6 V	0.59 in	0.59 in	0.23 in	UVLO	92 %	Surface Mount
