CD74AC238 Series

3-Line to 8-Line non-inverting decoder/demultiplexer

Catalog

3-Line to 8-Line non-inverting decoder/demultiplexer

Part	Package Width	Package Name	Package Length	Current - Output Low	Current - Output High	Type	Circuit	Mounting Type	Independent Circuits	Voltage Supply Source	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package / Case
Texas Instruments CD74AC238M96	3.9 mm	16-SOIC	0.154 in	24 mA	24 mA	Decoder/Demultiplexer	1 x 3:8	Surface Mount	1	Single Supply	125 °C	-55 °C	5.5 V	1.5 V

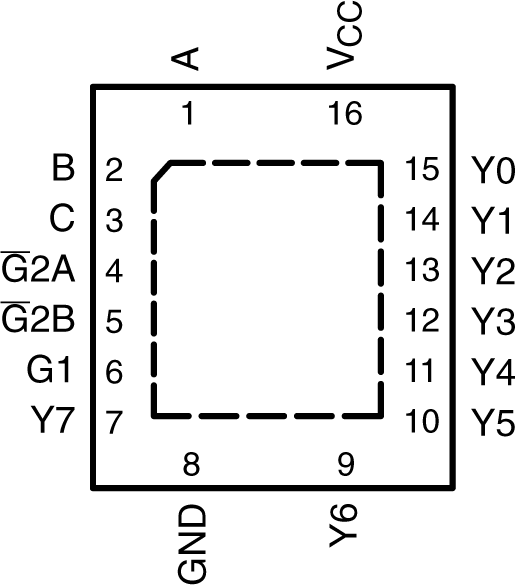

Texas Instruments CD74AC238BQBR	3.5 mm	16-WQFN	2.5 mm	24 mA	24 mA	Decoder/Demultiplexer	1 x 3:8	Surface Mount	1	Single Supply	125 °C	-40 °C	5.5 V	1.5 V	16-WFQFN Exposed Pad
Texas Instruments CD74AC238PWR	4.4 mm	16-TSSOP	0.173 in	24 mA	24 mA	Decoder/Demultiplexer	1 x 3:8	Surface Mount	1	Single Supply	125 °C	-40 °C	5.5 V	1.5 V

Catalog

3-Line to 8-Line non-inverting decoder/demultiplexer

Description

The CD74AC238 decoder/demultiplexer is designed for high-performance memory-decoding and data-routing applications that require very short propagation-delay times. In high-performance memory systems, this decoder can be used to minimize the effects of system decoding. The CD74AC238 decoder/demultiplexer is designed for high-performance memory-decoding and data-routing applications that require very short propagation-delay times. In high-performance memory systems, this decoder can be used to minimize the effects of system decoding.
