LMK04002 Series

Catalog

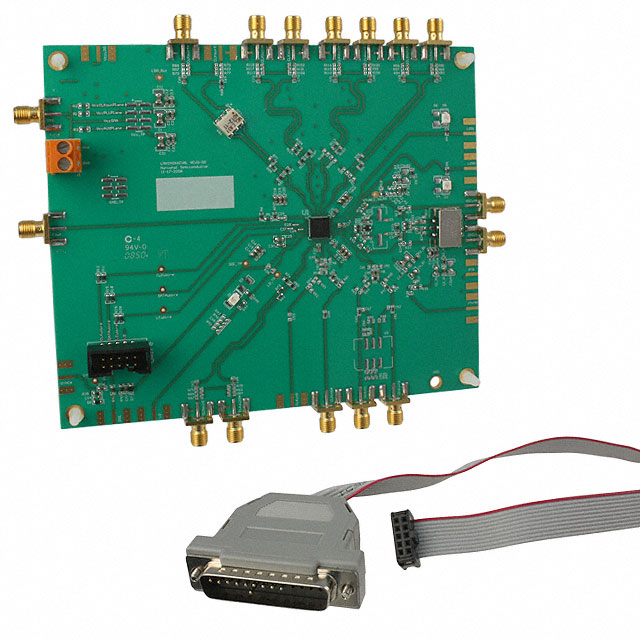

BOARD EVAL FOR LMK04002B

Part	Supplied Contents	Embedded	Primary Attributes	Secondary Attributes	Utilized IC / Part	Function	Contents	Type	Input	Output	Number of Circuits	Frequency - Max	Package / Case	Mounting Type	PLL	Divider	Multiplier	Operating Temperature (Min)	Operating Temperature (Max)	Differential Input	Differential Output	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Package Width	Package Name	Package Length	Output Ratio	Input Ratio
Texas Instruments LMK04002BEVAL/NOPB	Board(s) Cable(s)	No	122.88MHz VCXO	Integrated PLL and VCO	LMK04002	Clock Conditioner	Board Cable	Timing
Texas Instruments LMK04002BISQE/NOPB								Clock Conditioner	LVCMOS LVDS LVPECL	2VPECL LVCMOS LVPECL	1	1.75 GHz	48-WFQFN Exposed Pad	Surface Mount	Yes	Yes	Yes	-40 °C	85 °C	Yes	Yes	3.15 V	3.45 V	7 mm	48-WQFN	7 mm	7	2
Texas Instruments LMK04002BISQ/NOPB								Clock Conditioner	LVCMOS LVDS LVPECL	2VPECL LVCMOS LVPECL	1	1.75 GHz	48-WFQFN Exposed Pad	Surface Mount	Yes	Yes	Yes	-40 °C	85 °C	Yes	Yes	3.15 V	3.45 V	7 mm	48-WQFN	7 mm	7	2
Texas Instruments LMK04002BISQX/NOPB								Clock Conditioner	LVCMOS LVDS LVPECL	2VPECL LVCMOS LVPECL	1	1.75 GHz	48-WFQFN Exposed Pad	Surface Mount	Yes	Yes	Yes	-40 °C	85 °C	Yes	Yes	3.15 V	3.45 V	7 mm	48-WQFN	7 mm	7	2
Texas Instruments LMK04002BEVAL	Board(s) Cable(s)	No	122.88MHz VCXO	Integrated PLL and VCO	LMK04002	Clock Conditioner	Board Cable	Timing
Texas Instruments LMK04002BISQ/NOPB								Clock Conditioner	LVCMOS LVDS LVPECL	2VPECL LVCMOS LVPECL	1	1.75 GHz	48-WFQFN Exposed Pad	Surface Mount	Yes	Yes	Yes	-40 °C	85 °C	Yes	Yes	3.15 V	3.45 V	7 mm	48-WQFN	7 mm	7	2
Texas Instruments LMK04002BISQX/NOPB								Clock Conditioner	LVCMOS LVDS LVPECL	2VPECL LVCMOS LVPECL	1	1.75 GHz	48-WFQFN Exposed Pad	Surface Mount	Yes	Yes	Yes	-40 °C	85 °C	Yes	Yes	3.15 V	3.45 V	7 mm	48-WQFN	7 mm	7	2
