HMTMS-106 Series

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS .050" X .100" HIGH-TEMP VARIABLE POST HEIGHT MICRO TERMINAL STRIP

Part	Contact Material	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Connector Type	Number of Positions Loaded	Shrouding	Insulation Color	Contact Finish - Mating	Mounting Type	Insulation Material	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Fastening Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Length - Mating	Contact Length - Mating	Termination	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded [custom]	Contact Finish Thickness - Post

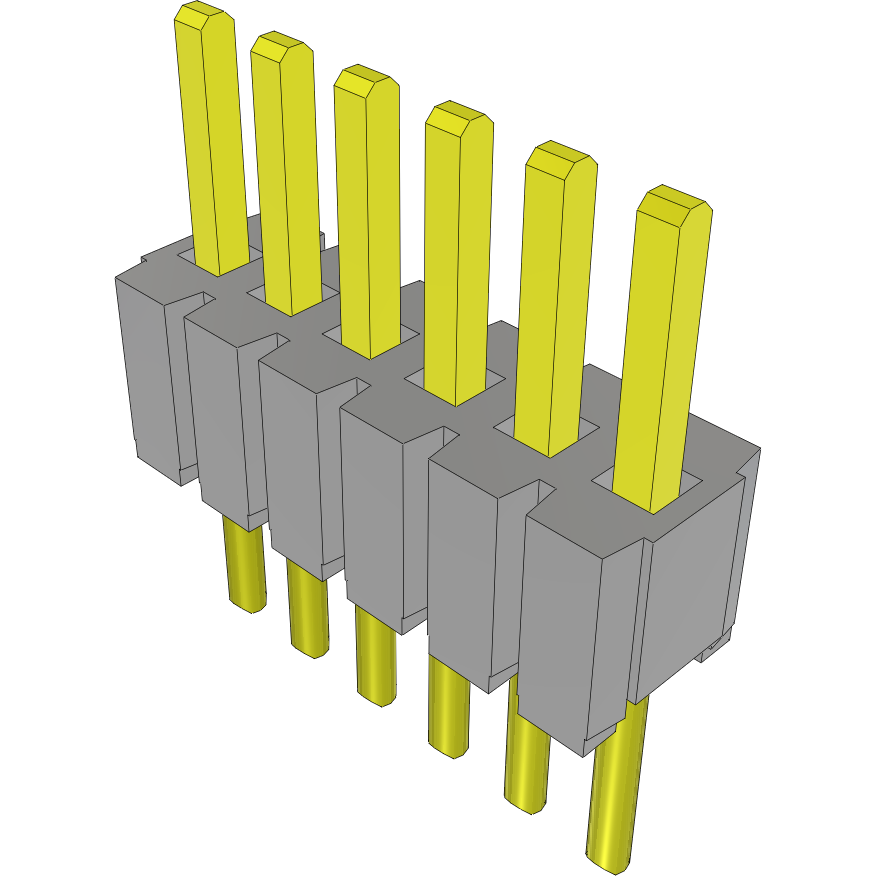

Samtec Inc. HMTMS-106-25-S-S-118	Phosphor Bronze	Square	30 Áin	0.76 Ám	1	Header	All	Unshrouded	Black	Gold	Through Hole	Liquid Crystal Polymer (LCP)	Tin	8.38 mm	0.33 in	Push-Pull	0.1 in	2.54 mm	0.05 in	1.27 mm	6	-55 °C	125 °C	Male Pin	3 mm	0.118 in	Solder	2.84 mm	0.112 in
Samtec Inc. HMTMS-106-52-SM-S-205	Phosphor Bronze	Square	30 Áin	0.76 Ám	1	Header	All	Unshrouded	Black	Gold	Through Hole	Liquid Crystal Polymer (LCP)	Tin			Push-Pull	0.1 in	2.54 mm	0.05 in	1.27 mm	6	-55 °C	125 °C	Male Pin	5.21 mm	0.205 in	Solder			0.12 in	3.05 mm
Samtec Inc. HMTMS-106-55-G-S-335-002	Phosphor Bronze	Square	10 çin	0.25 çm	1	Header		Unshrouded	Black	Gold	Through Hole	Liquid Crystal Polymer (LCP)	Gold	15.5 mm	0.61 in	Push-Pull	0.1 in	2.54 mm	0.05 in	1.27 mm	6	-55 °C	125 °C	Male Pin	8.51 mm	0.335 in	Solder	4.45 mm	0.175 in			5	Flash
Samtec Inc. HMTMS-106-53-L-S-185	Phosphor Bronze	Square	10 çin	0.25 çm	1	Header	All	Unshrouded	Black	Gold	Through Hole	Liquid Crystal Polymer (LCP)	Tin	12.83 mm	0.505 in	Push-Pull	0.1 in	2.54 mm	0.05 in	1.27 mm	6	-55 °C	125 °C	Male Pin	4.7 mm	0.185 in	Solder	5.59 mm	0.22 in
Samtec Inc. HMTMS-106-56-L-S-285	Phosphor Bronze	Square	10 çin	0.25 çm	1	Header	All	Unshrouded	Black	Gold	Through Hole	Liquid Crystal Polymer (LCP)	Tin	15.88 mm	0.625 in	Push-Pull	0.1 in	2.54 mm	0.05 in	1.27 mm	6	-55 °C	125 °C	Male Pin	7.24 mm	0.285 in	Solder	6.1 mm		0.24 in
Samtec Inc. HMTMS-106-53-L-S-285	Phosphor Bronze	Square	10 çin	0.25 çm	1	Header	All	Unshrouded	Black	Gold	Through Hole	Liquid Crystal Polymer (LCP)	Tin	12.83 mm	0.505 in	Push-Pull	0.1 in	2.54 mm	0.05 in	1.27 mm	6	-55 °C	125 °C	Male Pin	7.24 mm	0.285 in	Solder			0.12 in	3.05 mm
