TLV9004 Series

Catalog

QUAD, 5.5-V, 1-MHZ, RRIO OPERATIONAL AMPLIFIER FOR COST-OPTIMIZED APPLICATIONS

Part	Voltage - Input Offset	Current - Supply	Mounting Type	Voltage - Supply Span (Min)	Number of Circuits	Amplifier Type	Slew Rate	Current - Output / Channel	Output Type	Voltage - Supply Span (Max)	Gain Bandwidth Product	Package Name	Package Width	Package Length	Operating Temperature (Max)	Operating Temperature (Min)	Current - Input Bias	Package / Case
Texas Instruments TLV9004IPWR	400 µV	60 µA	Surface Mount	1.8 V	4	General Purpose	2 V/µs	40 mA	Rail-to-Rail	5.5 V	1 MHz	14-TSSOP	4.4 mm	0.173 in	125 °C	-40 °C	5 pA

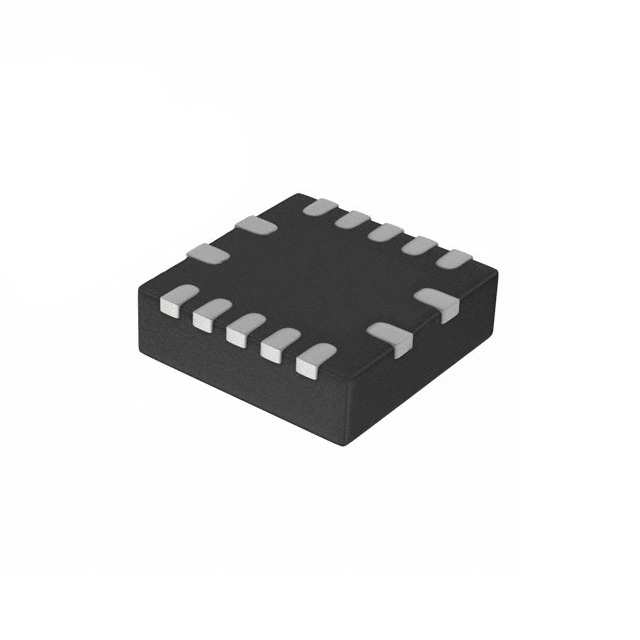

Texas Instruments TLV9004IRUCR	400 µV	60 µA	Surface Mount	1.8 V	4	General Purpose	2 V/µs	40 mA	Rail-to-Rail	5.5 V	1 MHz	14-QFN	2 mm	2 mm	125 °C	-40 °C	5 pA	14-XFQFN
Texas Instruments TLV9004IDYYR	400 µV	60 µA	Surface Mount	1.8 V	4	CMOS	2 V/µs	40 mA	Rail-to-Rail	5.5 V	1 MHz	14-SOT-23-THIN			125 °C	-40 °C	5 pA	SOT-23 Variant SOT-23-14 Thin
Texas Instruments TLV9004SIRTER	400 µV	60 µA	Surface Mount	1.8 V	4	General Purpose	2 V/µs	40 mA	Rail-to-Rail	5.5 V	1 MHz	16-WQFN	3 mm	3 mm	125 °C	-40 °C	5 pA	16-WFQFN Exposed Pad
Texas Instruments TLV9004IDR	400 µV	60 µA	Surface Mount	1.8 V	4	General Purpose	2 V/µs	40 mA	Rail-to-Rail	5.5 V	1 MHz	14-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	5 pA
