LM10000 Series

AVS System Controller

Catalog

AVS System Controller

Part	Mounting Type	Applications	Operating Temperature (Min)	Operating Temperature (Max)	Current - Supply	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package Name	Package Width	Package Length	Package / Case
Texas Instruments LM10000SD/NOPB	Surface Mount	Adaptive Voltage Scaling (AVS) System Controller	-45 °C	125 °C	315 µA	5.5 V	3 V	14-WSON	3 mm	4 mm	14-WFDFN Exposed Pad
Texas Instruments LM10000SDE/NOPB	Surface Mount	Adaptive Voltage Scaling (AVS) System Controller	-45 °C	125 °C	315 µA	5.5 V	3 V	14-WSON	3 mm	4 mm	14-WFDFN Exposed Pad
Texas Instruments LM10000SDX/NOPB	Surface Mount	Adaptive Voltage Scaling (AVS) System Controller	-45 °C	125 °C	315 µA	5.5 V	3 V	14-WSON	3 mm	4 mm	14-WFDFN Exposed Pad

Catalog

AVS System Controller

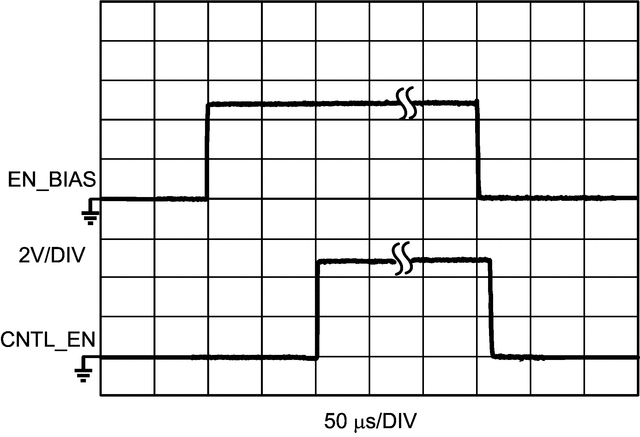

Description

The LM10000 is used to enable Adaptive Voltage Scaling (AVS) to non-AVS regulators. It includes a complete Slave Power Controller (SPC 2.0) to communicate to the PowerWise Interface (PWI 2.0), and a programmable current output DAC that allows voltage control to any regulator utilizing a feedback node/resistors to set the output voltage. In addition to enabling AVS the LM10000 allows the system to control power states such as sleep and shutdown, and to configure the voltage step slew rate from the PWI. The LM10000 is used to enable Adaptive Voltage Scaling (AVS) to non-AVS regulators. It includes a complete Slave Power Controller (SPC 2.0) to communicate to the PowerWise Interface (PWI 2.0), and a programmable current output DAC that allows voltage control to any regulator utilizing a feedback node/resistors to set the output voltage. In addition to enabling AVS the LM10000 allows the system to control power states such as sleep and shutdown, and to configure the voltage step slew rate from the PWI.
