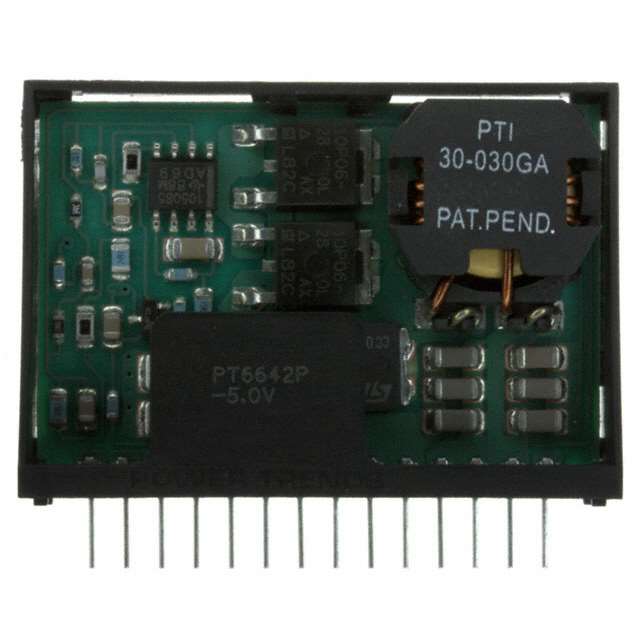

PT6642 Series
Manufacturer: Texas Instruments
Beta
⌘K
MODULE DC-DC 1-OUT -5V 4A 24W 14-PIN SIP MODULE
| Part | Package / Case | Mounting Type | Applications | Type | Efficiency | Voltage - Input (Min) | Number of Outputs | Operating Temperature (Min) | Operating Temperature (Max) | Current - Output (Max) | Voltage - Output 1 | Voltage - Input (Max) | Size / Dimension Length | Size / Dimension Height | Size / Dimension Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 14-SIP Module | Right Angle Through Hole | ITE (Commercial) | Non-Isolated PoL Module | 80 % | 8 V | 1 | -40 °C | 85 °C | 4 A | -5 V | 25 V | |||
 Texas Instruments | 14-SIP Module | Right Angle Through Hole | ITE (Commercial) | Non-Isolated PoL Module | 80 % | 8 V | 1 | -40 °C | 85 °C | 4 A | -5 V | 25 V | |||
 Texas Instruments | 14-SMD Module | Surface Mount | ITE (Commercial) | Non-Isolated PoL Module | 80 % | 8 V | 1 | -40 °C | 85 °C | 4 A | -5 V | 25 V | 1.71 in | 0.42 in | 1.22 in |
 Texas Instruments | 14-SIP Module | Through Hole | ITE (Commercial) | Non-Isolated PoL Module | 80 % | 8 V | 1 | -40 °C | 85 °C | 4 A | -5 V | 25 V |
