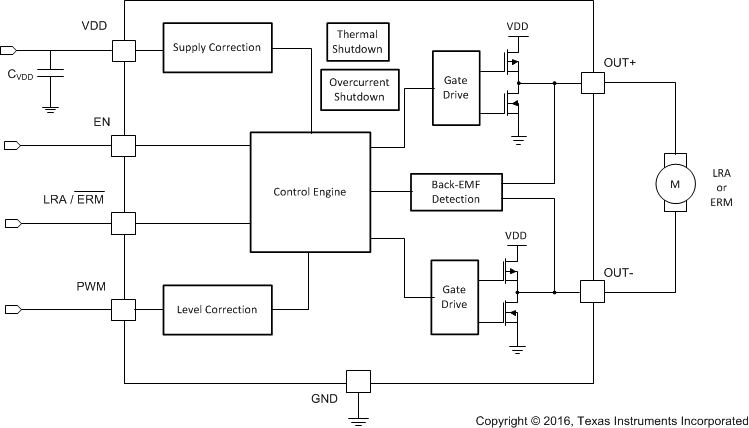

DRV2603 Series

Catalog

EVAL MODULE FOR DRV2603

Part	Supplied Contents	Secondary Attributes	Embedded Bit Width	Embedded	Type	Contents	Utilized IC / Part	Function	Package Name	Package Length	Package Width	Package / Case	Interface	Motor Type - AC, DC	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Applications	Technology	Mounting Type	Half-Bridge Count	Output Configuration	Voltage - Load (Max)	Voltage - Load (Min)	Operating Temperature (Min)	Operating Temperature (Max)
Texas Instruments DRV2603EVM-CT	Board(s) Cable(s)	On-Board LEDs	16 bit	MCU Yes	Power Management	Board Cable	DRV2603	Haptic/Vibration Motor Controller/Driver
Texas Instruments DRV2603RUNT								Control and Power Stage Driver - Fully Integrated	10-WQFN	2 mm	2 mm	10-WFQFN	Parallel PWM	ERM LRA	5.2 V	2.5 V	Haptic Feedback	Power MOSFET	Surface Mount	2	Half Bridge	5.2 V	2.5 V	-40 °C	150 °C
Texas Instruments DRV2603RUNR								Control and Power Stage Driver - Fully Integrated	10-WQFN	2 mm	2 mm	10-WFQFN	Parallel PWM	ERM LRA	5.2 V	2.5 V	Haptic Feedback	Power MOSFET	Surface Mount	2	Half Bridge	5.2 V	2.5 V	-40 °C	150 °C
