DAC8814 Series

Catalog

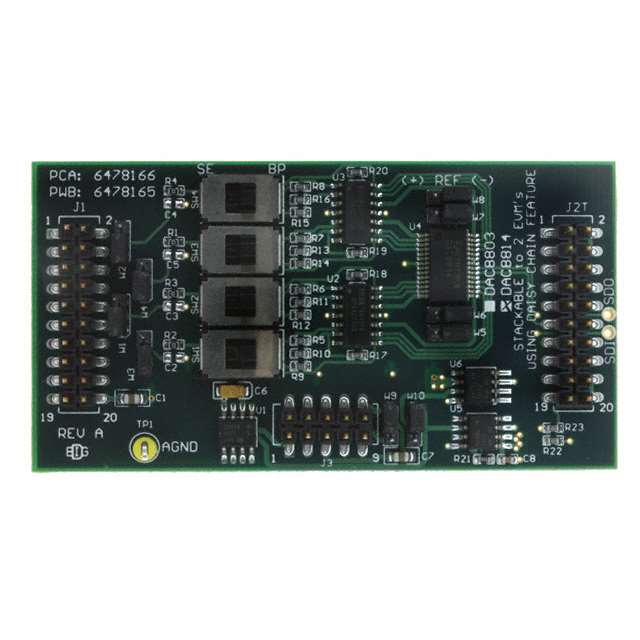

EVAL BOARD FOR DAC8814

Part	Settling Time	Supplied Contents	Number of Bits	Utilized IC / Part	Contents	DAC Type	Data Interface	Number of DAC's	DNL (Max) (LSB)	INL (Max) (LSB)	Operating Temperature (Min)	Operating Temperature (Max)	Output Type	Number of D/A Converters	Mounting Type	Package Width	Package Name	Package Length	Settling Time (Typical)	Architecture	Differential Output	Reference Type	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)
Texas Instruments DAC8814EVM	300 ns	Board(s)	16 bits	DAC8814	Board	Current	SPI	4
Texas Instruments DAC8814IBDBTG4			16 bits				SPI		1.5 LSB	4 LSB	-40 °C	85 °C	Current - Unbuffered	4 count	Surface Mount	5.3 mm	28-SSOP	0.209 in	500 ns	Multiplying DAC	No	External	2.7 V	5.5 V	2.7 V	5.5 V
Texas Instruments DAC8814ICDBT			16 bits				SPI		1 LSB	1 LSB	-40 °C	85 °C	Current - Unbuffered	4 count	Surface Mount	5.3 mm	28-SSOP	0.209 in	500 ns	Multiplying DAC	No	External	2.7 V	5.5 V	2.7 V	5.5 V
Texas Instruments DAC8814IBDBT			16 bits				SPI		1.5 LSB	4 LSB	-40 °C	85 °C	Current - Unbuffered	4 count	Surface Mount	5.3 mm	28-SSOP	0.209 in	500 ns	Multiplying DAC	No	External	2.7 V	5.5 V	2.7 V	5.5 V
Texas Instruments DAC8814IBDBR			16 bits				SPI		1.5 LSB	4 LSB	-40 °C	85 °C	Current - Unbuffered	4 count	Surface Mount	5.3 mm	28-SSOP	0.209 in	500 ns	Multiplying DAC	No	External	2.7 V	5.5 V	2.7 V	5.5 V
Texas Instruments DAC8814ICDBR			16 bits				SPI		1 LSB	1 LSB	-40 °C	85 °C	Current - Unbuffered	4 count	Surface Mount	5.3 mm	28-SSOP	0.209 in	500 ns	Multiplying DAC	No	External	2.7 V	5.5 V	2.7 V	5.5 V
