TPA310 Series

Catalog

EVALUATION MODULE FOR TPA3101D2

Part	Board Type	Supplied Contents	Contents	Amplifier Type	Output Type	Utilized IC / Part	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Load Impedance	Maximum Output Power (per Channel)	Channels	Mounting Type	Package / Case	Features	Package Length	Package Name	Package Width	Type	Operating Temperature (Max)	Operating Temperature (Min)
Texas Instruments TPA3101D2EVM	Fully Populated	Board(s)	Board	Class D	2-Channel (Stereo)	TPA3101D2	10 VDC	26 V	8 Ohm	10 W	2

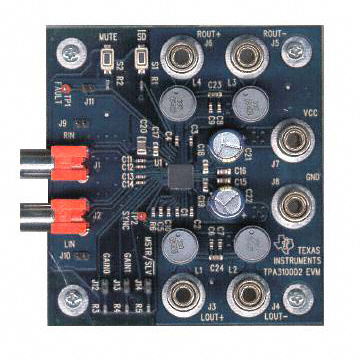

Texas Instruments TPA3100D2EVM	Fully Populated	Board(s)	Board	Class D	2-Channel (Stereo)	TPA3100D2	10 VDC	26 V	8 Ohm	20 W	2
Texas Instruments TPA3101D2RGZTG4					2-Channel (Stereo)		10 VDC	26 V	8 Ohm	10 W	2	Surface Mount	48-VFQFN Exposed Pad	Differential Inputs Mute Short-Circuit and Thermal Protection Shutdown	7 mm	48-VQFN	7 mm	Class D
Texas Instruments TPA3107D2PAPT					2-Channel (Stereo)		10 VDC	26 V	6 Ohm	15 W	2	Surface Mount	64-PowerTQFP	Differential Inputs Mute Short-Circuit and Thermal Protection Shutdown	10 mm	64-HTQFP	10 mm	Class D	85 °C	-40 °C
Texas Instruments TPA3107D2PAPTG4					2-Channel (Stereo)		10 VDC	26 V	6 Ohm	15 W	2	Surface Mount	64-PowerTQFP	Differential Inputs Mute Short-Circuit and Thermal Protection Shutdown	10 mm	64-HTQFP	10 mm	Class D	85 °C	-40 °C
