TPS22913 Series
Manufacturer: Texas Instruments
Beta
⌘K
POWER SWITCH ICS - POWER DISTRIBUTION ULTRA-SM LOW RON 2A SGL CH LOAD SWITCH A 595-TPS22913BYZVR
| Part | Output Ratio | Input Ratio | Interface | Switch Type | Mounting Type | Current - Output (Max) | Voltage - Load (Max) | Voltage - Load (Min) | Features | Operating Temperature (Max) | Operating Temperature (Min) | Package Name | Package Width | Package Length | Output Type | Fault Protection | Output Configuration | Rds On (Typ) | Package / Case | Input Type | Voltage - Supply (Vdd/Vcc) | Voltage - Supply (Vcc/Vdd) | Number of Outputs | Supplied Contents | Type | Primary Attributes | Current | Contents | Utilized IC / Part | Function | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | 1 | 1 | On/Off | General Purpose | Surface Mount | 2 A | 5.5 V | 1.4 V | Load Discharge Slew Rate Controlled | 85 °C | -40 °C | 4-DSBGA | 0.88 mm | 0.88 mm | P-Channel | Reverse Current UVLO | High Side | 60 mOhm | 4-XFBGA DSBGA | Non-Inverting | Not Required | Not Required | 1 | ||||||||
 Texas Instruments | Board(s) | Power Management | Controlled Turn-ON Low rON Single Channel Single Channel 2A Low rON Controlled Turn-ON | 2 A | Board | TPS22913B | Power Distribution Switch (Load Switch) | No | |||||||||||||||||||||||
Texas Instruments | 1 | 1 | On/Off | General Purpose | Surface Mount | 2 A | 5.5 V | 1.4 V | Load Discharge Slew Rate Controlled | 85 °C | -40 °C | 4-DSBGA | 0.88 mm | 0.88 mm | P-Channel | Reverse Current UVLO | High Side | 60 mOhm | 4-XFBGA DSBGA | Non-Inverting | Not Required | Not Required | 1 | ||||||||
Texas Instruments | 1 | 1 | On/Off | General Purpose | Surface Mount | 2 A | 5.5 V | 1.4 V | Load Discharge Slew Rate Controlled | 85 °C | -40 °C | 4-DSBGA | 0.88 mm | 0.88 mm | P-Channel | Reverse Current UVLO | High Side | 60 mOhm | 4-XFBGA DSBGA | Non-Inverting | Not Required | Not Required | 1 | ||||||||

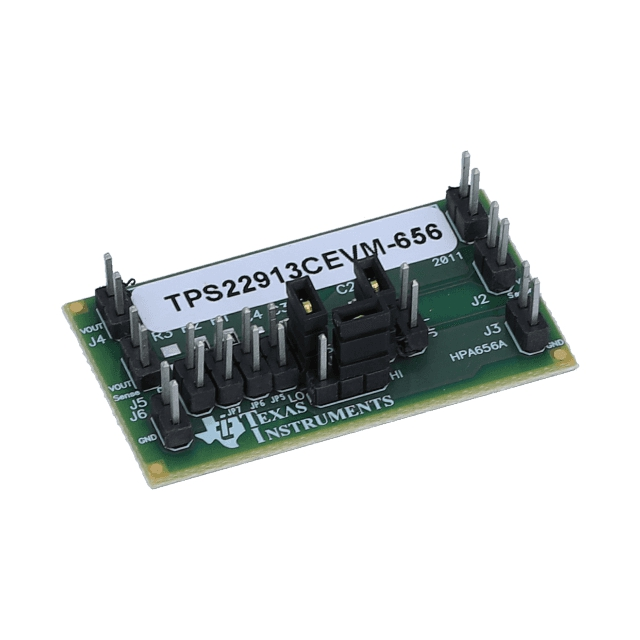

 Texas Instruments | Board(s) | Power Management | Controlled Turn-ON Low rON Single Channel Single Channel 2A Low rON Controlled Turn-ON | 2 A | Board | TPS22913C | Power Distribution Switch (Load Switch) | No | |||||||||||||||||||||||
Texas Instruments | 1 | 1 | On/Off | General Purpose | Surface Mount | 2 A | 5.5 V | 1.4 V | Load Discharge Slew Rate Controlled | 85 °C | -40 °C | 4-DSBGA | 0.88 mm | 0.88 mm | P-Channel | Reverse Current UVLO | High Side | 60 mOhm | 4-XFBGA DSBGA | Non-Inverting | Not Required | Not Required | 1 |
