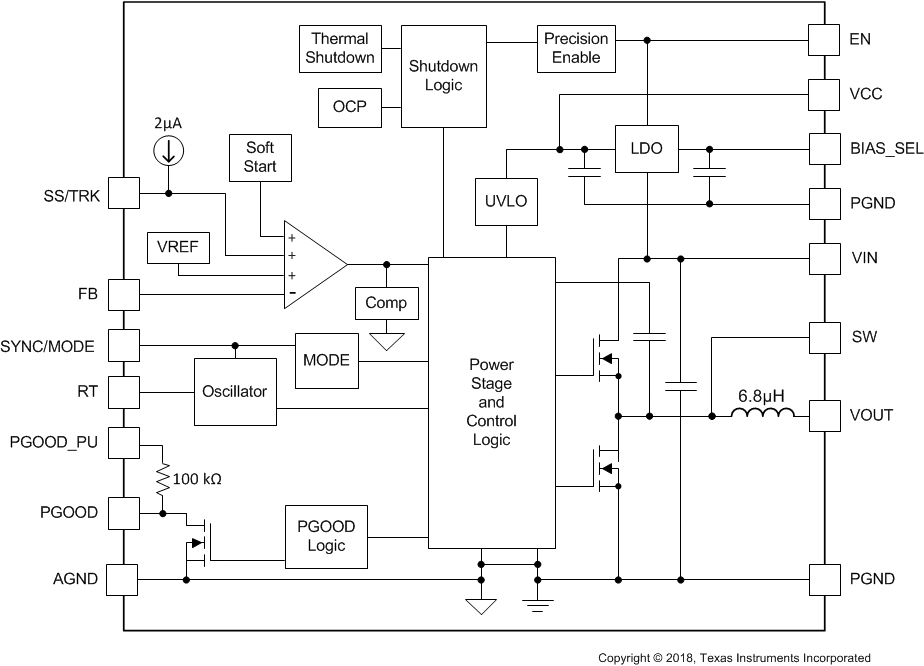

LMZM33604 Series
Manufacturer: Texas Instruments
Beta
⌘K
SWITCHING VOLTAGE REGULATORS 3.5-V TO 36-V INPUT 1-V TO 20-V OUTPUT
| Part | Mounting Type | Current - Output (Max) | Size / Dimension Length | Size / Dimension Height | Size / Dimension Width | Efficiency | Package / Case | Voltage - Output 1 (Min) | Voltage - Output 1 (Max) | Type | Number of Outputs | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Input (Max) | Voltage - Input (Min) | Features | Package Name | Package Width | Package Length | Applications | Board Type | Total Output Count | Output Type | Non-Isolated Output Count | Supplied Contents | Voltage - Input (Minimum) | Voltage - Input (Maximum) | Regulator Topology | Voltage - Output (2) | Voltage - Output (1) | Voltage - Output (4) | Voltage - Output (5) | Voltage - Output (3) | Main Purpose | Contents | Utilized IC / Part | Current - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Surface Mount | 4 A | 0.63 in | 0.16 in | 0.39 in | 91 % | 41-PowerBQFN Module | 1 V | 20 V | Non-Isolated PoL Module | 1 | -40 °C | 105 °C | 36 V | 3.5 V | OCP OTP OVP Remote On/Off UVLO | 41-B2QFN | 10 mm | 16 mm | ITE (Commercial) | |||||||||||||||||
 Texas Instruments | Fully Populated | 1 | Non-Isolated | 1 count | Board(s) | 3.5 V | 36 V | Buck | 1.8 V | 1.2 V | 3.3 V | 5 V | 2.5 V | DC/DC Step Down | Board | LMZM33604 | 4 A |
