MAX232 Series

5-V dual channel 120kbps RS-232 line driver/receiver with +/-9V output & +/-2-kV ESD protection

Catalog

5-V dual channel 120kbps RS-232 line driver/receiver with +/-9V output & +/-2-kV ESD protection

Part	Duplex	Number of Drivers	Number of Receivers	Data Rate	Mounting Type	Protocol	Package Name	Package Length	Package Width	Operating Temperature (Max)	Operating Temperature (Min)	Receiver Hysteresis	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Type
Texas Instruments MAX232ECDWRE4	Full	2	2	250 Kbps	Surface Mount	RS232	16-SOIC	0.295 in	7.5 mm	70 °C	0 °C	500 mV	5.5 V	4.5 V	Transceiver
Texas Instruments MAX232EIN	Full	2	2	250 Kbps	Through Hole	RS232	16-DIP 16-PDIP	0.3 in	7.62 mm	85 °C	-40 °C	500 mV	5.5 V	4.5 V	Transceiver
Texas Instruments MAX232NS		2	2	120 Kbps	Surface Mount	RS232	16-SO 16-SOIC	0.209 in	5.3 mm	70 °C	0 °C	500 mV	5.5 V	4.5 V	Transceiver
Texas Instruments MAX232DW	Full	2	2	120 Kbps	Surface Mount	RS232	16-SOIC	0.295 in	7.5 mm	70 °C	0 °C	500 mV	5.5 V	4.5 V	Transceiver
Texas Instruments MAX232IDWRG4	Full	2	2	120 Kbps	Surface Mount	RS232	16-SOIC	0.295 in	7.5 mm	85 °C	-40 °C	500 mV	5.5 V	4.5 V	Transceiver
Texas Instruments MAX232ECDW	Full	2	2	250 Kbps	Surface Mount	RS232	16-SOIC	0.295 in	7.5 mm	70 °C	0 °C	500 mV	5.5 V	4.5 V	Transceiver
Texas Instruments MAX232ID	Full	2	2	120 Kbps	Surface Mount	RS232	16-SOIC	0.154 in	3.9 mm	85 °C	-40 °C	500 mV	5.5 V	4.5 V	Transceiver
Texas Instruments MAX232ECPWRG4	Full	2	2	250 Kbps	Surface Mount	RS232	16-TSSOP	0.173 in	4.4 mm	70 °C	0 °C	500 mV	5.5 V	4.5 V	Transceiver
Texas Instruments MAX232NG4	Full	2	2	120 Kbps	Through Hole	RS232	16-DIP 16-PDIP	0.3 in	7.62 mm	70 °C	0 °C	500 mV	5.5 V	4.5 V	Transceiver
Texas Instruments MAX232ECD	Full	2	2	250 Kbps	Surface Mount	RS232	16-SOIC	0.154 in	3.9 mm	70 °C	0 °C	500 mV	5.5 V	4.5 V	Transceiver

Catalog

5-V dual channel 120kbps RS-232 line driver/receiver with +/-9V output & +/-2-kV ESD protection

Description

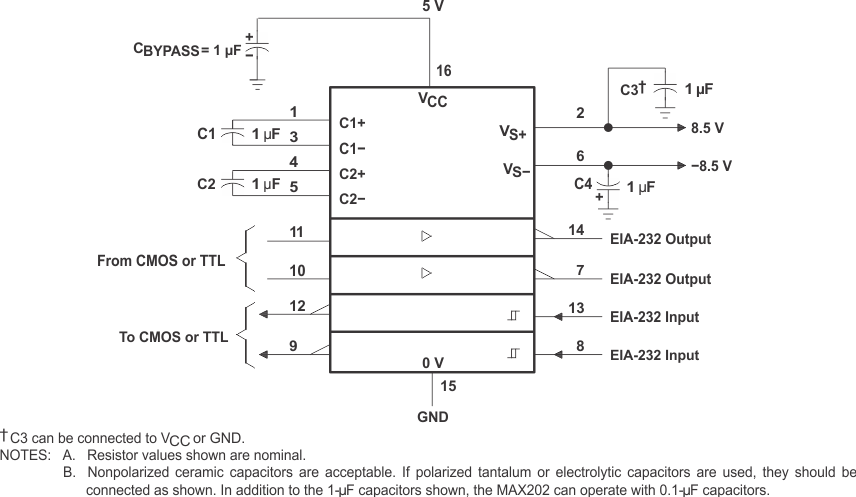

The MAX232E is a dual driver and receiver that includes a capacitive voltage generator to supply RS-232-F compliant voltage levels from a single 5V supply. Each receiver converts RS-232 inputs to 5V TTL/CMOS levels. This receiver has a typical threshold of 1.3V, a typical hysteresis of 0.5V, and can accept ±30V inputs. Each driver converts TTL/CMOS input levels into TIA/RS-232-F levels. The MAX232E is a dual driver and receiver that includes a capacitive voltage generator to supply RS-232-F compliant voltage levels from a single 5V supply. Each receiver converts RS-232 inputs to 5V TTL/CMOS levels. This receiver has a typical threshold of 1.3V, a typical hysteresis of 0.5V, and can accept ±30V inputs. Each driver converts TTL/CMOS input levels into TIA/RS-232-F levels.
