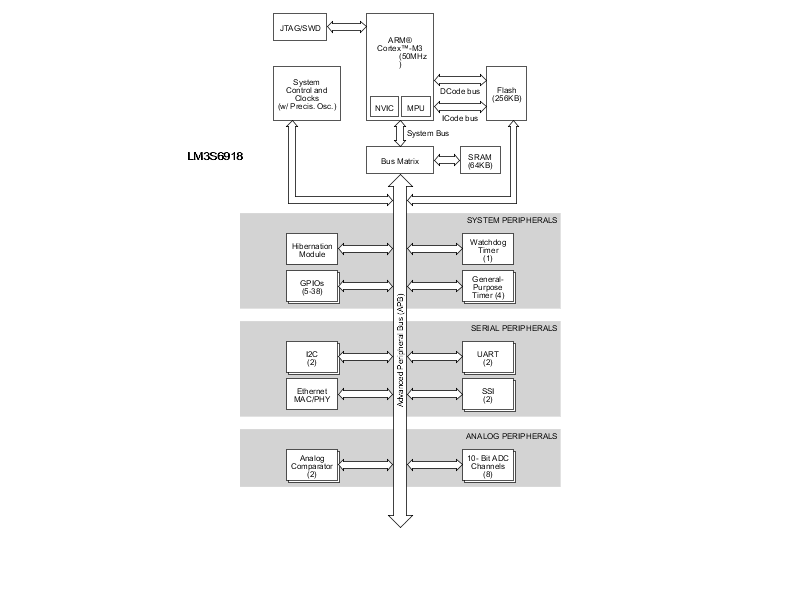

LM3S6918 Series

Catalog

MCU 32-BIT ARM CORTEX M3 RISC 256KB FLASH 2.5V/3V/3.3V 108-PIN NFBGA TRAY

Part	Peripherals	Core Processor	A/D Channels	A/D Resolution (bits)	Program Memory Type	RAM Size Depth	RAM Size Width	Package Length	Package Name	Package Width	Package / Case	Oscillator Type	Mounting Type	Connectivity	Program Memory Width	Program Memory Depth	Program Memory Size	Core Size (Bit Width)	Operating Temperature (Max)	Operating Temperature (Min)	Number of I/O	Speed	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Core Configuration
Texas Instruments LM3S6918-IBZ50-A2	Brown-out Detect POR PWM Reset WDT	ARM® Cortex®-M3	8 count	10 bit	FLASH	64 K	8 bit	10 mm	108-BGA	10 mm	108-LFBGA	Internal	Surface Mount	Ethernet I2C IrDA Microwire SPI SSI UART USART	8 bit	256 K	256 KB	32 Bit	85 °C	-40 °C	38	50 MHz	2.25 V	2.75 V	Single-Core
Texas Instruments LM3S6918-IQC50-A2T	Brown-out Detect POR PWM Reset WDT	ARM® Cortex®-M3	8 count	10 bit	FLASH	64 K	8 bit	14 mm	100-LQFP	14 mm	100-LQFP	Internal	Surface Mount	Ethernet I2C IrDA Microwire SPI SSI UART USART	8 bit	256 K	256 KB	32 Bit	85 °C	-40 °C	38	50 MHz	2.25 V	2.75 V	Single-Core
Texas Instruments LM3S6918-EQC50-A2T	Brown-out Detect POR PWM Reset WDT	ARM® Cortex®-M3	8 count	10 bit	FLASH	64 K	8 bit	14 mm	100-LQFP	14 mm	100-LQFP	Internal	Surface Mount	Ethernet I2C IrDA Microwire SPI SSI UART USART	8 bit	256 K	256 KB	32 Bit	105 °C	-40 °C	38	50 MHz	2.25 V	2.75 V	Single-Core
Texas Instruments LM3S6918-EQC50-A2	Brown-out Detect POR PWM Reset WDT	ARM® Cortex®-M3	8 count	10 bit	FLASH	64 K	8 bit	14 mm	100-LQFP	14 mm	100-LQFP	Internal	Surface Mount	Ethernet I2C IrDA Microwire SPI SSI UART USART	8 bit	256 K	256 KB	32 Bit	105 °C	-40 °C	38	50 MHz	2.25 V	2.75 V	Single-Core
Texas Instruments LM3S6918-IQC50-A2	Brown-out Detect POR PWM Reset WDT	ARM® Cortex®-M3	8 count	10 bit	FLASH	64 K	8 bit	14 mm	100-LQFP	14 mm	100-LQFP	Internal	Surface Mount	Ethernet I2C IrDA Microwire SPI SSI UART USART	8 bit	256 K	256 KB	32 Bit	85 °C	-40 °C	38	50 MHz	2.25 V	2.75 V	Single-Core
