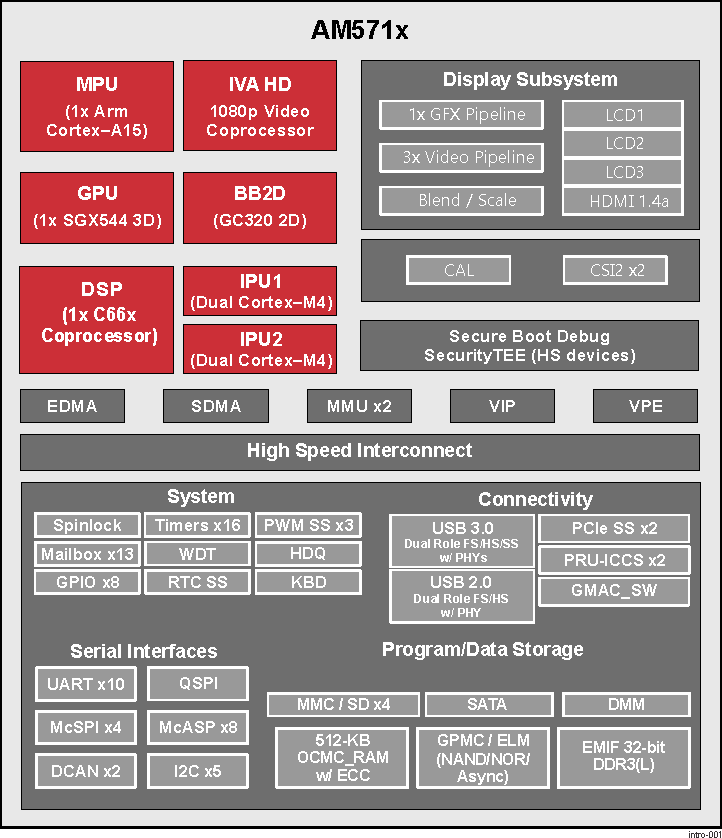

AM5716 Series

Catalog

MPU AM571X RISC 32BIT 28NM 500MHZ 760-PIN FCBGA TRAY

Part	Co-Processors/DSP	Bus Width	Number of Cores	SATA Speed	SATA Interface	SATA Port Count	Mounting Type	Ethernet Ports	Ethernet Speed Options	Package Width	Package Name	Package Length	USB 2.0 Count	USB	USB 3.0 Count	Core Processor	Additional Interfaces	Graphics Acceleration	RAM Controllers	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Speed	Voltage - I/O (Option 2)	Voltage - I/O (Option 1)	Qualification	Grade
Texas Instruments AM5716AABCD	GPU IPU Multimedia VFP	32 Bit	1 Core	3 Gbps	SATA	1	Surface Mount	1	1000Mbps 100Mbps 10Mbps	23 mm	760-FCBGA	23 mm	1 count	USB 2.0 USB 3.0	1 count	ARM® Cortex®-A15	CAN EBI EMI HDQ/1-Wire® I2C McASP McSPI MMC/SD/SDIO PCIe QSPI UART	No	DDR3 SRAM	760-BFBGA FCBGA	0 °C	90 °C	500 MHz	3.3 V	1.8 V
Texas Instruments AM5716AABCDA	GPU IPU Multimedia VFP	32 Bit	1 Core	3 Gbps	SATA	1	Surface Mount	1	1000Mbps 100Mbps 10Mbps	23 mm	760-FCBGA	23 mm	1 count	USB 2.0 USB 3.0	1 count	ARM® Cortex®-A15	CAN EBI EMI HDQ/1-Wire® I2C McASP McSPI MMC/SD/SDIO PCIe QSPI UART	No	DDR3 SRAM	760-BFBGA FCBGA	-40 °C	105 °C	500 MHz	3.3 V	1.8 V
Texas Instruments AM5716AABCXEA	GPU IPU Multimedia VFP	32 Bit	1 Core	3 Gbps	SATA	1	Surface Mount	1	1000Mbps 100Mbps 10Mbps	23 mm	760-FCBGA	23 mm	1 count	USB 2.0 USB 3.0	1 count	ARM® Cortex®-A15	CAN EBI EMI HDQ/1-Wire® I2C McASP McSPI MMC/SD/SDIO PCIe QSPI UART	No	DDR3 SRAM	760-BFBGA FCBGA	-40 °C	105 °C	1.5 GHz	3.3 V	1.8 V
Texas Instruments AM5716AABCDEA	GPU IPU Multimedia VFP	32 Bit	1 Core	3 Gbps	SATA	1	Surface Mount	1	1000Mbps 100Mbps 10Mbps	23 mm	760-FCBGA	23 mm	1 count	USB 2.0 USB 3.0	1 count	ARM® Cortex®-A15	CAN EBI EMI HDQ/1-Wire® I2C McASP McSPI MMC/SD/SDIO PCIe QSPI UART	No	DDR3 SRAM	760-BFBGA FCBGA	-40 °C	105 °C	500 MHz	3.3 V	1.8 V
Texas Instruments AM5716AABCX	GPU IPU Multimedia VFP	32 Bit	1 Core	3 Gbps	SATA	1	Surface Mount	1	1000Mbps 100Mbps 10Mbps	23 mm	760-FCBGA	23 mm	1 count	USB 2.0 USB 3.0	1 count	ARM® Cortex®-A15	CAN EBI EMI HDQ/1-Wire® I2C McASP McSPI MMC/SD/SDIO PCIe QSPI UART	No	DDR3 SRAM	760-BFBGA FCBGA	0 °C	90 °C	1.5 GHz	3.3 V	1.8 V
Texas Instruments AM5716AABCXQ1	GPU IPU Multimedia VFP	32 Bit	1 Core	3 Gbps	SATA	1	Surface Mount	1	1000Mbps 100Mbps 10Mbps	23 mm	760-FCBGA	23 mm	1 count	USB 2.0 USB 3.0	1 count	ARM® Cortex®-A15	CAN EBI EMI HDQ/1-Wire® I2C McASP McSPI MMC/SD/SDIO PCIe QSPI UART	Yes	DDR3 SRAM	760-BFBGA FCBGA	-40 °C	125 °C	1.5 GHz	3.3 V	1.8 V	AEC-Q100	Automotive
Texas Instruments AM5716AABCXEQ1	GPU IPU Multimedia VFP	32 Bit	1 Core	3 Gbps	SATA	1	Surface Mount	1	1000Mbps 100Mbps 10Mbps	23 mm	760-FCBGA	23 mm	1 count	USB 2.0 USB 3.0	1 count	ARM® Cortex®-A15	CAN EBI EMI HDQ/1-Wire® I2C McASP McSPI MMC/SD/SDIO PCIe QSPI UART	Yes	DDR3 SRAM	760-BFBGA FCBGA	-40 °C	125 °C	1.5 GHz	3.3 V	1.8 V	AEC-Q100	Automotive
Texas Instruments AM5716AABCXA	GPU IPU Multimedia VFP	32 Bit	1 Core	3 Gbps	SATA	1	Surface Mount	1	1000Mbps 100Mbps 10Mbps	23 mm	760-FCBGA	23 mm	1 count	USB 2.0 USB 3.0	1 count	ARM® Cortex®-A15	CAN EBI EMI HDQ/1-Wire® I2C McASP McSPI MMC/SD/SDIO PCIe QSPI UART	No	DDR3 SRAM	760-BFBGA FCBGA	-40 °C	105 °C	1.5 GHz	3.3 V	1.8 V
