DAC60096 Series
Manufacturer: Texas Instruments
Beta
⌘K
96-CHANNEL, 12-BIT, LOW-POWER, HIGH-VOLTAGE DAC WITH EXTERNAL CONVERSION TRIGGER
| Part | Package / Case | Data Interface | Architecture | Number of Bits | Package Name | Package Width | Package Length | Output Type | Voltage - Supply, Digital (Max) | Voltage - Supply, Digital (Min) | Operating Temperature (Min) | Operating Temperature (Max) | Number of D/A Converters | Reference Type | Mounting Type | Differential Output | Settling Time | Voltage - Supply, Analog (Max) | Voltage - Supply, Analog (Min) | DNL (LSB) Tolerance | INL (LSB) Tolerance | Supplied Contents | DAC Type | Number of DAC's | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 196-LBGA | DSP SPI | R-2R | 12 bits | 196-NFBGA | 15 mm | 15 mm | Voltage - Unbuffered | 5.5 V | 3 V | -40 °C | 85 °C | 96 count | External | Surface Mount | No | 65 µs | 12.6 V | 11.2 V | 0.1 LSB | 0.15 LSB | |||||

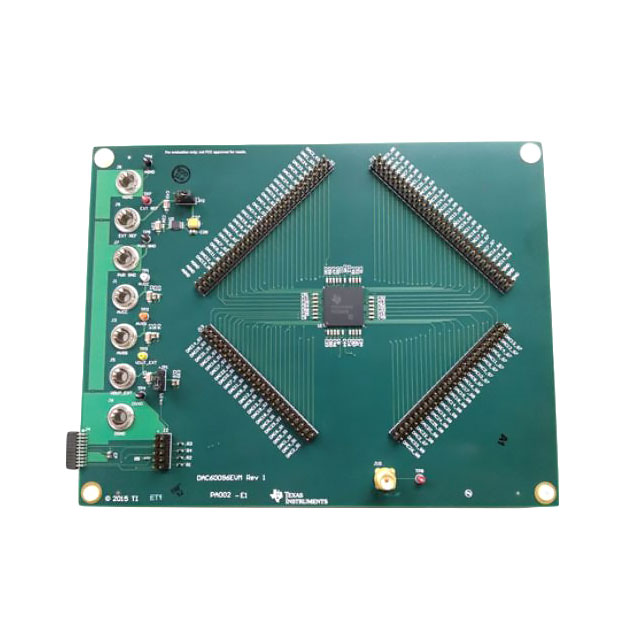

 Texas Instruments | Serial SPI | 12 bits | 160 µs | Board(s) | Voltage | 96 | Board | DAC60096 |
