DS90UH926Q-Q1 Series
Manufacturer: Texas Instruments
Beta
⌘K

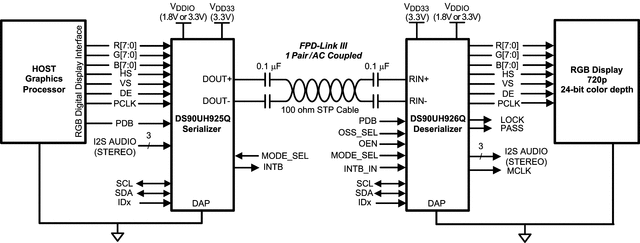

5 - 85 MHZ 24-BIT COLOR FPD-LINK III DESERIALIZER WITH HDCP
| Part | Voltage - Supply (Range 2 Maximum) | Voltage - Supply (Range 2 Minimum) | Voltage - Supply (Range 1 Maximum) | Voltage - Supply (Range 1 Minimum) | Operating Temperature (Max) | Operating Temperature (Min) | Function | Input Type | Number of Outputs | Grade | Qualification | Package Width | Package Name | Package Length | Number of Inputs | Output Type | Package / Case | Data Rate | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 3.6 V | 3 V | 1.89 V | 1.71 V | 105 °C | -40 °C | Deserializer | FPD-Link III LVDS | 31 | Automotive | AEC-Q100 | 9 mm | 60-WQFN | 9 mm | 1 | LVCMOS | 60-WFQFN Exposed Pad | 2.975 Gbps | Surface Mount |
