75LVCP601 Series

Catalog

EVAL MODULE SN75LVCP601

Part	Supplied Contents	Type	Utilized IC / Part	Contents	Embedded	Function	Package Width	Package Name	Package Length	Output	Data Rate (Max)	Input	Number of Channels	Current - Supply	Signal Conditioning	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Delay Time	Applications	Package / Case

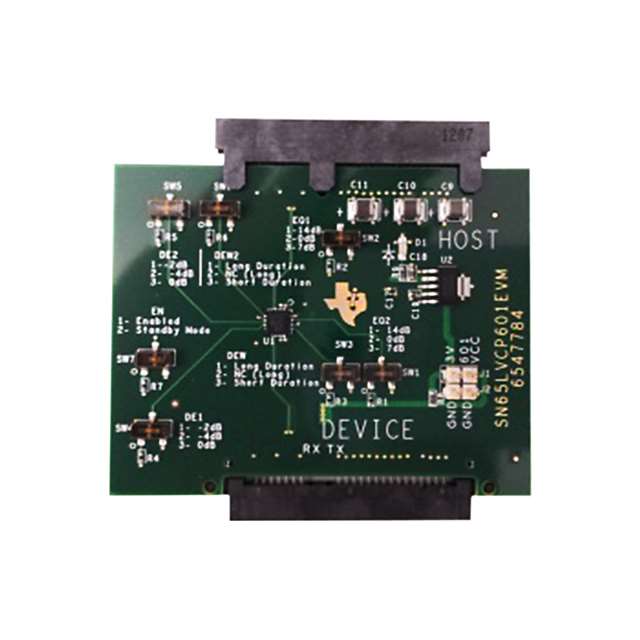

Texas Instruments SN75LVCP601EVM	Board(s)	Interface	SN75LVCP601	Board	No	Re-Driver
Texas Instruments SN75LVCP601RTJT		Buffer ReDriver					4 mm	20-QFN	4 mm	VML	6 Gbps	CML	2	65 mA	Input Equalization Output De-Emphasis	Surface Mount	85 °C	0 °C	3.6 V	3 V	323 ps	SATA	20-WFQFN Exposed Pad
Texas Instruments SN75LVCP601RTJR		Buffer ReDriver					4 mm	20-QFN	4 mm	VML	6 Gbps	CML	2	65 mA	Input Equalization Output De-Emphasis	Surface Mount	85 °C	0 °C	3.6 V	3 V	323 ps	SATA	20-WFQFN Exposed Pad
