DS15BA101 Series
Manufacturer: Texas Instruments
Beta
⌘K

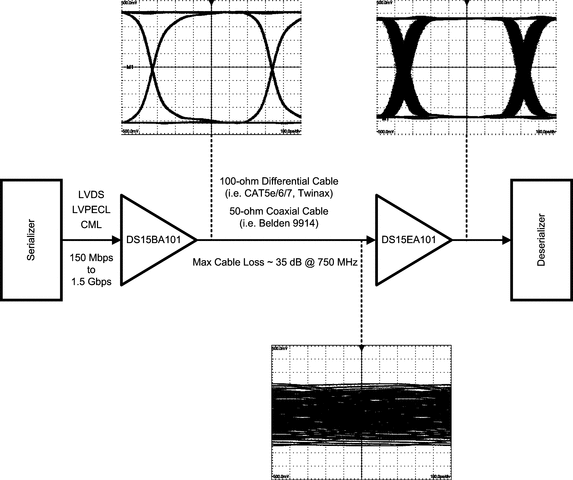

1.5-GBPS DIFFERENTIAL BUFFER WITH ADJUSTABLE OUTPUT VOLTAGE
| Part | Applications | Data Rate (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Number of Channels | Delay Time | Type | Input | Package / Case | Mounting Type | Current - Supply | Output | Package Length | Package Name | Package Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | LVDS | 1.5 Gbps | -40 °C | 85 °C | 3.135 V | 3.465 V | 1 | 1.1 ns | Buffer ReDriver | CML LVDS LVPECL | 8-WFDFN Exposed Pad | Surface Mount | 45 mA | CML LVDS | 3 mm | 8-WSON | 3 mm |
Texas Instruments | LVDS | 1.5 Gbps | -40 °C | 85 °C | 3.135 V | 3.465 V | 1 | 1.1 ns | Buffer ReDriver | CML LVDS LVPECL | 8-WFDFN Exposed Pad | Surface Mount | 45 mA | CML LVDS | 3 mm | 8-WSON | 3 mm |
 Texas Instruments | LVDS | 1.5 Gbps | -40 °C | 85 °C | 3.135 V | 3.465 V | 1 | 1.1 ns | Buffer ReDriver | CML LVDS LVPECL | 8-WFDFN Exposed Pad | Surface Mount | 45 mA | CML LVDS | 3 mm | 8-WSON | 3 mm |
