DCPA10512 Series

Miniature, 1W Isolated Unregulated DC/DC Converters

Catalog

Miniature, 1W Isolated Unregulated DC/DC Converters

Part	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Voltage - Output 1	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)	Applications	Number of Outputs	Efficiency	Current - Output (Max)	Voltage - Input (Min)	Voltage - Isolation	Mounting Type	Voltage - Input (Max)	Package Name	Type	Voltage - Output 2	Package Leads	Board Type	Supplied Contents	Power - Output	Total Output Count	Output Type	Isolated Output Count	Utilized IC / Part	Voltage - Output	Main Purpose	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Contents	Voltage - Output (Min)	Voltage - Output (Max)
Texas Instruments DCPA10512DP	0.76 in	0.21 in	0.26 in	12 V	100 °C	-40 °C	1 W	ITE (Commercial)	2	88 %	42 mA	4.5 V	2000 V	Through Hole	5.5 V	14-DIP 7-PDIP	Isolated Module	-12 V	7 Leads
Texas Instruments DCPA10512P	0.76 in	0.21 in	0.26 in	12 V	100 °C	-40 °C	1 W	ITE (Commercial)	1	87 %	83 mA	4.5 V	2000 V	Through Hole	5.5 V	14-DIP 7-PDIP	Isolated Module		7 Leads
Texas Instruments DCPA10512EVM-861																				Fully Populated	Board(s)	1 W	1	Isolated	1	DCPA10505	12 V	DC/DC Converter	4.5 V	5.5 V	Board

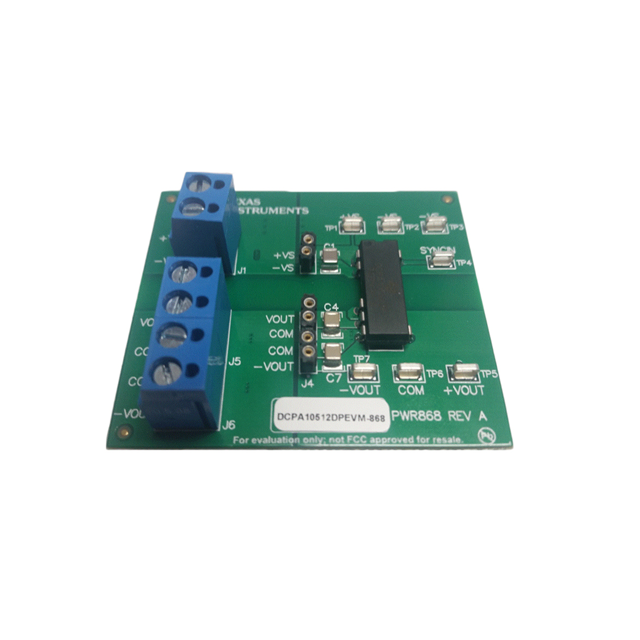

Texas Instruments DCPA10512DEVM-868																				Fully Populated	Board(s)	1 W	2	Isolated	2 count	DCPA10505		DC/DC Converter	4.5 V	5.5 V	Board	-12 V	12 V
Texas Instruments DCPA10512P-U/700	0.76 in	0.21 in	0.26 in	12 V	100 °C	-40 °C	1 W	ITE (Commercial)	1	87 %	83 mA	4.5 V	2000 V	Surface Mount	5.5 V	14-SMD Module 7-SOP	Isolated Module		7 Leads

Catalog

Miniature, 1W Isolated Unregulated DC/DC Converters

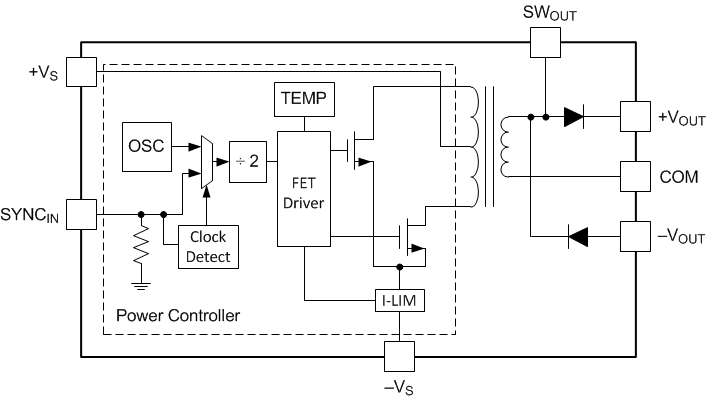

Description

The DCPA1 series is a family of 1-W, isolated, unregulated DC/DC converter modules. Requiring a minimum of two external components, the DCPA1 series of devices include on-chip device protection, and the ability to synchronize to an external clock. This combination of features and small size makes the DCPA1 series of devices suitable for a wide range of applications, and is an easy-to-use solution in applications requiring signal path isolation. The DCPA1 series is a family of 1-W, isolated, unregulated DC/DC converter modules. Requiring a minimum of two external components, the DCPA1 series of devices include on-chip device protection, and the ability to synchronize to an external clock. This combination of features and small size makes the DCPA1 series of devices suitable for a wide range of applications, and is an easy-to-use solution in applications requiring signal path isolation.
