LM98555 Series

CCD Driver

Catalog

CCD Driver

Part	Package Features	Package Name	Package Length	Package Width	Operating Temperature (Max)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Mounting Type	Applications
Texas Instruments LM98555CCMHX	Exposed Pad	64-TFSOP 64-TSSOP	0.24 in	6.1 mm	70 °C	5.5 V	3 V	Surface Mount	CCD Driver
Texas Instruments LM98555CCMHX/NOPB	Exposed Pad	64-TFSOP 64-TSSOP	0.24 in	6.1 mm	70 °C	5.5 V	3 V	Surface Mount	CCD Driver
Texas Instruments LM98555CCMH/NOPB	Exposed Pad	64-TFSOP 64-TSSOP	0.24 in	6.1 mm	70 °C	5.5 V	3 V	Surface Mount	CCD Driver
Texas Instruments LM98555CCMH/NOPB	Exposed Pad	64-TFSOP 64-TSSOP	0.24 in	6.1 mm	70 °C	5.5 V	3 V	Surface Mount	CCD Driver
Texas Instruments LM98555CCMHX/NOPB	Exposed Pad	64-TFSOP 64-TSSOP	0.24 in	6.1 mm	70 °C	5.5 V	3 V	Surface Mount	CCD Driver

Catalog

CCD Driver

Description

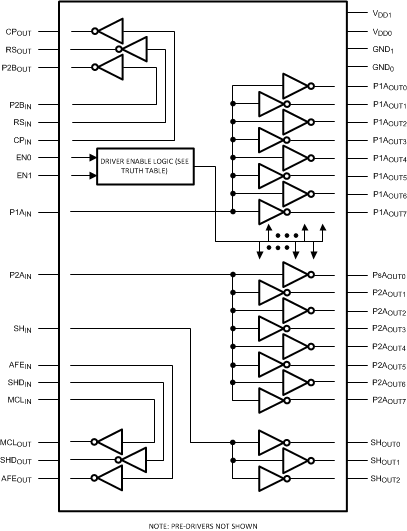

The LM98555 is a highly integrated driver circuit intended for CCD driving applications. It combines 25 drivers of varying drive strengths into one chip to provide a complete CCD driving solution. Due to this one-chip integration, optimal skew control is achieved for this demanding application. The LM98555 is a highly integrated driver circuit intended for CCD driving applications. It combines 25 drivers of varying drive strengths into one chip to provide a complete CCD driving solution. Due to this one-chip integration, optimal skew control is achieved for this demanding application.
