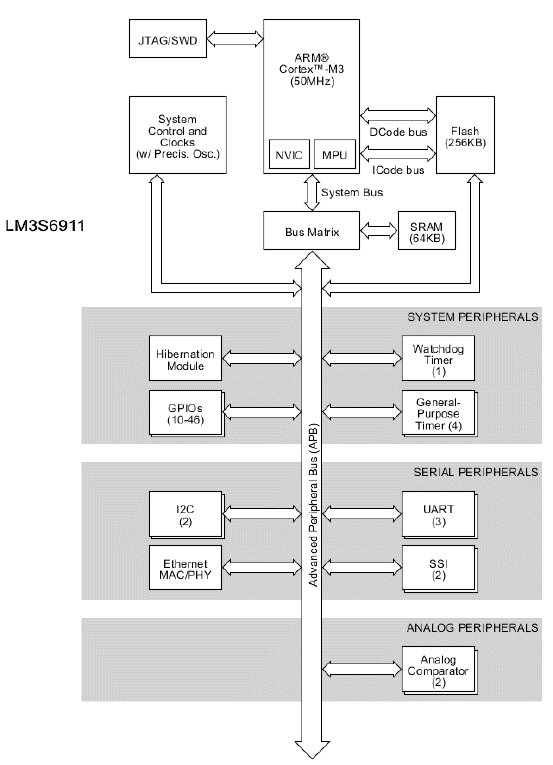

LM3S6911 Series

Catalog

IC MCU 32BIT 256KB FLASH 100LQFP

Part	Core Size (Bit Width)	Core Configuration	Operating Temperature (Max)	Operating Temperature (Min)	RAM Size Depth	RAM Size Width	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Peripherals	Program Memory Width	Program Memory Depth	Program Memory Size	Number of I/O	Oscillator Type	Program Memory Type	Mounting Type	Connectivity	Package Width	Package Name	Package Length	Speed	Package / Case	Core Processor
Texas Instruments LM3S6911-EQC50-A2	32 Bit	Single-Core	105 °C	-40 °C	64 K	8 bit	2.25 V	2.75 V	Brown-out Detect POR PWM Reset WDT	8 bit	256 K	256 KB	46	Internal	FLASH	Surface Mount	Ethernet I2C IrDA Microwire SPI SSI UART USART	14 mm	100-LQFP	14 mm	50 MHz	100-LQFP	ARM® Cortex®-M3
Texas Instruments LM3S6911-IQC50-A2T	32 Bit	Single-Core	85 °C	-40 °C	64 K	8 bit	2.25 V	2.75 V	Brown-out Detect POR PWM Reset WDT	8 bit	256 K	256 KB	46	Internal	FLASH	Surface Mount	Ethernet I2C IrDA Microwire SPI SSI UART USART	14 mm	100-LQFP	14 mm	50 MHz	100-LQFP	ARM® Cortex®-M3
Texas Instruments LM3S6911-EBZ50-A2	32 Bit	Single-Core	105 °C	-40 °C	64 K	8 bit	2.25 V	2.75 V	Brown-out Detect POR PWM Reset WDT	8 bit	256 K	256 KB	46	Internal	FLASH	Surface Mount	Ethernet I2C IrDA Microwire SPI SSI UART USART	10 mm	108-BGA	10 mm	50 MHz	108-LFBGA	ARM® Cortex®-M3
Texas Instruments LM3S6911-IBZ50-A2T	32 Bit	Single-Core	85 °C	-40 °C	64 K	8 bit	2.25 V	2.75 V	Brown-out Detect POR PWM Reset WDT	8 bit	256 K	256 KB	46	Internal	FLASH	Surface Mount	Ethernet I2C IrDA Microwire SPI SSI UART USART	10 mm	108-BGA	10 mm	50 MHz	108-LFBGA	ARM® Cortex®-M3
Texas Instruments LM3S6911-IBZ50-A2	32 Bit	Single-Core	85 °C	-40 °C	64 K	8 bit	2.25 V	2.75 V	Brown-out Detect POR PWM Reset WDT	8 bit	256 K	256 KB	46	Internal	FLASH	Surface Mount	Ethernet I2C IrDA Microwire SPI SSI UART USART	10 mm	108-BGA	10 mm	50 MHz	108-LFBGA	ARM® Cortex®-M3
Texas Instruments LM3S6911-IQC50-A2	32 Bit	Single-Core	85 °C	-40 °C	64 K	8 bit	2.25 V	2.75 V	Brown-out Detect POR PWM Reset WDT	8 bit	256 K	256 KB	46	Internal	FLASH	Surface Mount	Ethernet I2C IrDA Microwire SPI SSI UART USART	14 mm	100-LQFP	14 mm	50 MHz	100-LQFP	ARM® Cortex®-M3
Texas Instruments LM3S6911-EQC50-A2T	32 Bit	Single-Core	105 °C	-40 °C	64 K	8 bit	2.25 V	2.75 V	Brown-out Detect POR PWM Reset WDT	8 bit	256 K	256 KB	46	Internal	FLASH	Surface Mount	Ethernet I2C IrDA Microwire SPI SSI UART USART	14 mm	100-LQFP	14 mm	50 MHz	100-LQFP	ARM® Cortex®-M3
