AM26LV32 Series

Enhanced Product Low-Voltage High-Speed Quad Differential Line Receiver, +/-15-kV IEC ESD

Catalog

Enhanced Product Low-Voltage High-Speed Quad Differential Line Receiver, +/-15-kV IEC ESD

Part	Mounting Type	Type	Protocol	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Number of Receivers	Package Name	Package Width	Package Length	Receiver Hysteresis	Operating Temperature (Max)	Operating Temperature (Min)
Texas Instruments AM26LV32CDE4	Surface Mount	Receiver	RS422 RS485	3.6 V	3 V	4	16-SOIC	3.9 mm	0.154 in	50 mV	70 °C	0 °C
Texas Instruments AM26LV32CNSR	Surface Mount	Receiver	RS422 RS485	3.6 V	3 V	4	16-SO 16-SOIC	5.3 mm	0.209 in	50 mV	70 °C	0 °C
Texas Instruments AM26LV32CNSRG4	Surface Mount	Receiver	RS422 RS485	3.6 V	3 V	4	16-SO 16-SOIC	5.3 mm	0.209 in	50 mV	70 °C	0 °C
Texas Instruments AM26LV32IDR	Surface Mount	Receiver	RS422 RS485	3.6 V	3 V	4	16-SOIC	3.9 mm	0.154 in	50 mV	85 °C	-40 °C
Texas Instruments AM26LV32EIDRG4	Surface Mount	Receiver	RS422 RS485	3.6 V	3 V	4	16-SOIC	3.9 mm	0.154 in	35 mV	85 °C	-40 °C
Texas Instruments AM26LV32IDE4	Surface Mount	Receiver	RS422 RS485	3.6 V	3 V	4	16-SOIC	3.9 mm	0.154 in	50 mV	85 °C	-40 °C
Texas Instruments AM26LV32EMDREP	Surface Mount	Receiver	RS422 RS485	3.6 V	3 V	4	16-SOIC	3.9 mm	0.154 in	35 mV	125 °C	-55 °C
Texas Instruments AM26LV32EIDR	Surface Mount	Receiver	RS422 RS485	3.6 V	3 V	4	16-SOIC	3.9 mm	0.154 in	35 mV	85 °C	-40 °C
Texas Instruments AM26LV32INS	Surface Mount	Receiver	RS422 RS485	3.6 V	3 V	4	16-SO 16-SOIC	5.3 mm	0.209 in	50 mV	85 °C	-40 °C
Texas Instruments AM26LV32INSR	Surface Mount	Receiver	RS422 RS485	3.6 V	3 V	4	16-SO 16-SOIC	5.3 mm	0.209 in	50 mV	85 °C	-40 °C

Catalog

Enhanced Product Low-Voltage High-Speed Quad Differential Line Receiver, +/-15-kV IEC ESD

Description

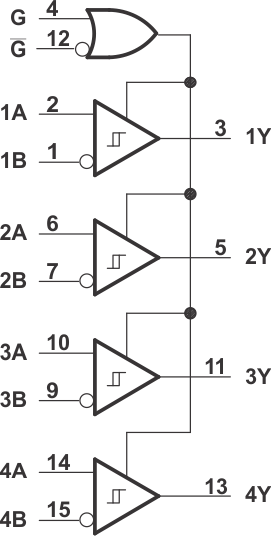

The AM26LV32E consists of quadruple differential line receivers with 3-state outputs. These differential receivers have ±15-kV ESD (HBM and IEC61000-4-2, Air-Gap Discharge) and ±8-kV ESD (IEC61000-4-2, Contact Discharge) protection for RS422 bus pins. This device is designed to meet TIA/EIA-422-B and ITU recommendation V.11 drivers with reduced supply voltage. The device is optimized for balanced bus transmission at switching rates up to 32 MHz. The 3-state outputs permit connection directly to a bus-organized system. The AM26LV32E has an internal fail-safe circuitry that prevents the device from putting an unknown voltage signal at the receiver outputs. In the open fail-safe, shorted fail-safe, and terminated fail-safe, a high state is produced at the respective output. This device is supported for partial-power-down applications using Ioff. Ioffcircuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The AM26LV32EM is characterized for operation from –55°C to 125°C. The AM26LV32E consists of quadruple differential line receivers with 3-state outputs. These differential receivers have ±15-kV ESD (HBM and IEC61000-4-2, Air-Gap Discharge) and ±8-kV ESD (IEC61000-4-2, Contact Discharge) protection for RS422 bus pins. This device is designed to meet TIA/EIA-422-B and ITU recommendation V.11 drivers with reduced supply voltage. The device is optimized for balanced bus transmission at switching rates up to 32 MHz. The 3-state outputs permit connection directly to a bus-organized system. The AM26LV32E has an internal fail-safe circuitry that prevents the device from putting an unknown voltage signal at the receiver outputs. In the open fail-safe, shorted fail-safe, and terminated fail-safe, a high state is produced at the respective output. This device is supported for partial-power-down applications using Ioff. Ioffcircuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The AM26LV32EM is characterized for operation from –55°C to 125°C.
