ADS8405 Series

16-Bit 1.25 MSPS Unipolar Input Micro Power Sampling ADC

Catalog

16-Bit 1.25 MSPS Unipolar Input Micro Power Sampling ADC

Part	Ratio - ADC	Ratio - S/H	Number of Bits	Architecture	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case	Configuration	Reference Type	Number of A/D Converters	Data Interface	Mounting Type	Package Length	Package Name	Package Width	Number of Inputs	Sampling Rate (Per Second)	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Voltage - Supply, Analog	Input Type	Supplied Contents	Power (Typ)	Input Voltage (Max)	Input Voltage (Min)	Utilized IC / Part	Contents
Texas Instruments ADS8405IBPFBT	1	1	16 bits	SAR	-40 °C	85 °C	48-TQFP	S/H-ADC	External Internal	1 count	Parallel	Surface Mount	7 mm	48-TQFP	7 mm	1	1.25 MHz	2.7 V	5.25 V	5 V	Pseudo-Differential
Texas Instruments ADS8405IPFBR	1	1	16 bits	SAR	-40 °C	85 °C	48-TQFP	S/H-ADC	External Internal	1 count	Parallel	Surface Mount	7 mm	48-TQFP	7 mm	1	1.25 MHz	2.7 V	5.25 V	5 V	Pseudo-Differential

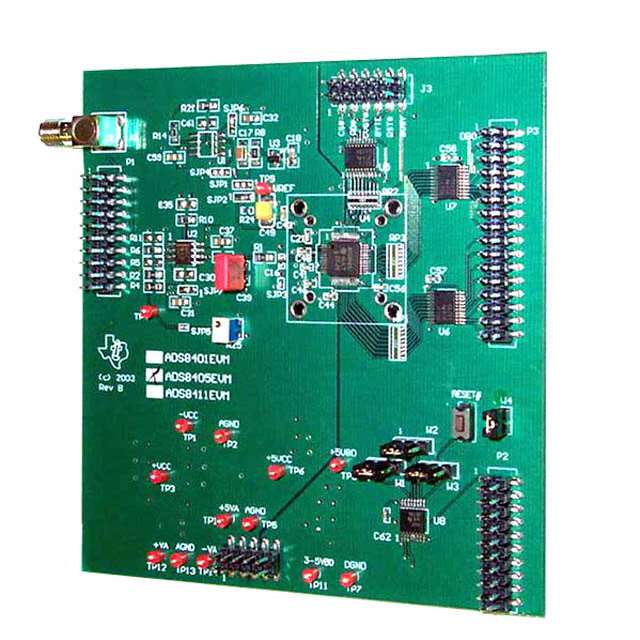

Texas Instruments ADS8405EVM			16 bits							1 count	Parallel						1.25 MHz					Board(s)	155 mW	4.096 V	0 mV	ADS8405	Board
Texas Instruments ADS8405IBPFBTG4	1	1	16 bits	SAR	-40 °C	85 °C	48-TQFP	S/H-ADC	External Internal	1 count	Parallel	Surface Mount	7 mm	48-TQFP	7 mm	1	1.25 MHz	2.7 V	5.25 V	5 V	Pseudo-Differential
Texas Instruments ADS8405IPFBT	1	1	16 bits	SAR	-40 °C	85 °C	48-TQFP	S/H-ADC	External Internal	1 count	Parallel	Surface Mount	7 mm	48-TQFP	7 mm	1	1.25 MHz	2.7 V	5.25 V	5 V	Pseudo-Differential
Texas Instruments ADS8405IBPFBR	1	1	16 bits	SAR	-40 °C	85 °C	48-TQFP	S/H-ADC	External Internal	1 count	Parallel	Surface Mount	7 mm	48-TQFP	7 mm	1	1.25 MHz	2.7 V	5.25 V	5 V	Pseudo-Differential

Catalog

16-Bit 1.25 MSPS Unipolar Input Micro Power Sampling ADC

Description

The ADS8405 is a 16-bit, 1.25-MHz A/D converter with an internal 4.096-V reference. The device includes a 16-bit capacitor-based SAR A/D converter with inherent sample and hold. The ADS8405 offers a full 16-bit interface and an 8-bit option where data is read using two 8-bit read cycles if necessary. The ADS8405 has a unipolar pseudo-differential input. It is available in a 48-lead TQFP package and is characterized over the industrial –40°C to 85°C temperature range. The ADS8405 is a 16-bit, 1.25-MHz A/D converter with an internal 4.096-V reference. The device includes a 16-bit capacitor-based SAR A/D converter with inherent sample and hold. The ADS8405 offers a full 16-bit interface and an 8-bit option where data is read using two 8-bit read cycles if necessary. The ADS8405 has a unipolar pseudo-differential input. It is available in a 48-lead TQFP package and is characterized over the industrial –40°C to 85°C temperature range.
