LM20136 Series
Manufacturer: Texas Instruments
Beta
⌘K

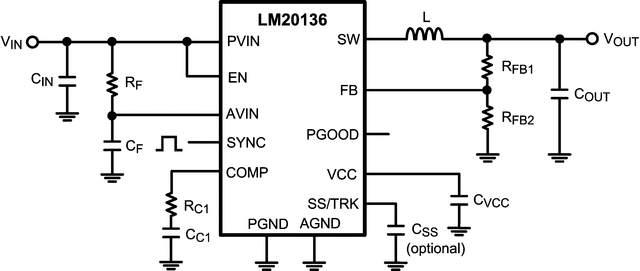

2.95-5.5V, 6A, CURRENT MODE SYNCHRONOUS BUCK REGULATOR WITH INPUT SYNCHRONIZATION
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Input (Min) | Topology | Voltage - Output (Max) | Voltage - Input (Max) | Function | Current - Output | Output Configuration | Synchronous Rectifier | Voltage - Output (Min/Fixed) | Frequency - Switching | Package Length | Package Name | Package Width | Output Type | Mounting Type | Number of Outputs | Total Output Count | Non-Isolated Output Count | Supplied Contents | Board Type | Voltage - Output | Voltage - Input (Maximum) | Voltage - Input (Minimum) | Regulator Topology | Main Purpose | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 125 °C | -40 °C | 2.95 V | Buck | 4.68 V | 5.5 V | Step-Down | 6 A | Positive | Yes | 0.8 V | 410 kHz | 0.173 in | 16-HTSSOP 16-PowerTSSOP | 4.4 mm | Adjustable | Surface Mount | 1 | |||||||||||
 Texas Instruments | 6 A | 400 kHz | Non-Isolated | 1 | 1 count | Board(s) | Fully Populated | 3.3 V | 5.5 V | 2.95 V | Buck | DC/DC Step Down | LM20136 | Board | |||||||||||||||
Texas Instruments | 125 °C | -40 °C | 2.95 V | Buck | 4.68 V | 5.5 V | Step-Down | 6 A | Positive | Yes | 0.8 V | 410 kHz | 0.173 in | 16-HTSSOP 16-PowerTSSOP | 4.4 mm | Adjustable | Surface Mount | 1 | |||||||||||
Texas Instruments | 125 °C | -40 °C | 2.95 V | Buck | 4.68 V | 5.5 V | Step-Down | 6 A | Positive | Yes | 0.8 V | 410 kHz | 0.173 in | 16-HTSSOP 16-PowerTSSOP | 4.4 mm | Adjustable | Surface Mount | 1 |
