REF34-Q1 Series

Catalog

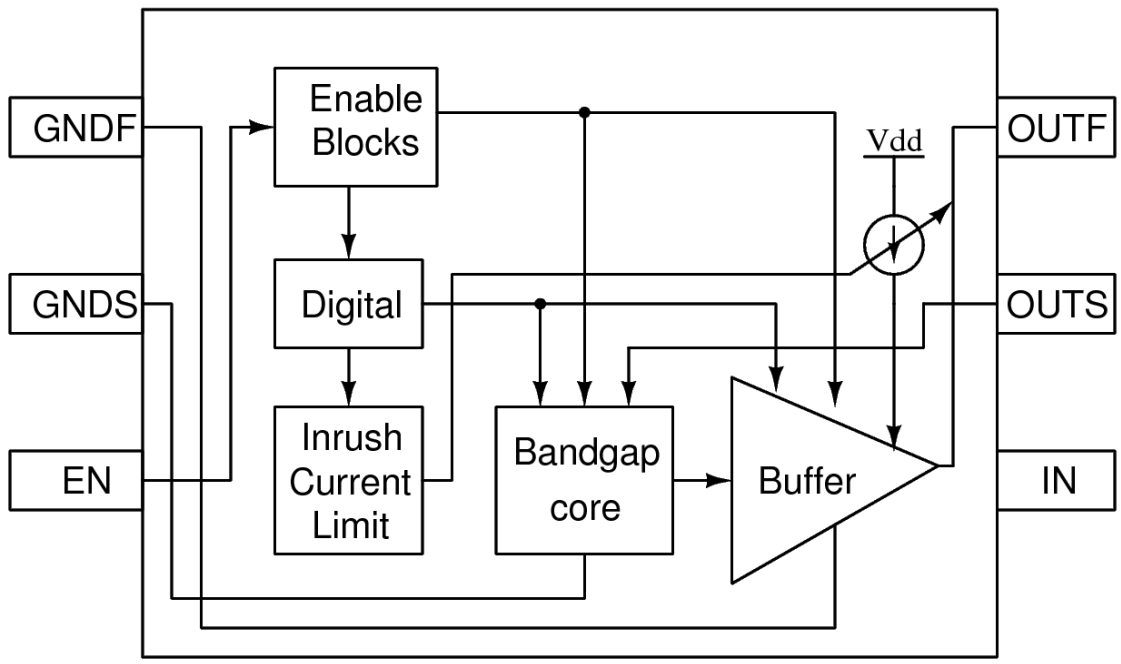

AUTOMOTIVE, LOW-DRIFT, LOW-POWER, SMALL-FOOTPRINT SERIES VOLTAGE REFERENCE

Part	Noise	Reference Type	Tolerance	Output Type	Qualification	Package Name	Grade	Current - Output	Voltage - Output (Min/Fixed)	Current - Supply	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Mounting Type	Temperature Coefficient	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Package Width	Package Length
Texas Instruments REF3430SQDBVRQ1	5 µVp-p 15 µVp-p 24 µVrms	Series	0.05 %	Fixed	AEC-Q100	SOT-23-5	Automotive	10 mA	3 V	95 µA	3.5 V	12 V	Surface Mount	6 ppm/¯C	125 °C	-40 °C
Texas Instruments REF3433QDBVRQ1	5 µVp-p 24 µVrms	Series	0.05 %	Fixed	AEC-Q100	SOT-23-6	Automotive	10 mA	3.3 V	95 µA	3.8 V	12 V	Surface Mount	6 ppm/¯C	125 °C	-40 °C -40 °C	SOT-23-6
Texas Instruments REF3430QDGKRQ1	5 µVp-p 15 µVp-p 24 µVrms	Series	0.05 %	Fixed	AEC-Q100	8-TSSOP 8-MSOP 8-VSSOP	Automotive	10 mA	3 V	95 µA	3.5 V	12 V	Surface Mount	6 ppm/¯C	125 °C	-40 °C		3 mm	0.118 in
Texas Instruments REF3440SQDBVRQ1	3.8 µVp-p 24 µVrms	Series	0.05 %	Fixed	AEC-Q100	SOT-23-5	Automotive	10 mA	4.096 V	95 µA	4.596 V	12 V	Surface Mount	6 ppm/¯C	125 °C	-40 °C
Texas Instruments REF3440QDBVRQ1	3.8 µVp-p 24 µVrms	Series	0.05 %	Fixed	AEC-Q100	SOT-23-6	Automotive	10 mA	4.096 V	95 µA	4.596 V	12 V	Surface Mount	6 ppm/¯C	125 °C	-40 °C	SOT-23-6
Texas Instruments REF3433SQDBVRQ1	5 µVp-p 24 µVrms	Series	0.05 %	Fixed	AEC-Q100	SOT-23-5	Automotive	10 mA	3.3 V	95 µA	3.8 V	12 V	Surface Mount	6 ppm/¯C	125 °C	-40 °C
Texas Instruments REF3425SQDBVRQ1	5 µVp-p 24 µVrms	Series	0.05 %	Fixed	AEC-Q100	SOT-23-5	Automotive	10 mA	2.5 V	95 µA	3 V	12 V	Surface Mount	6 ppm/¯C	125 °C	-40 °C
Texas Instruments REF3440QDGKRQ1	3.8 µVp-p 24 µVrms	Series	0.05 %	Fixed	AEC-Q100	8-TSSOP 8-MSOP 8-VSSOP	Automotive	10 mA	4.096 V	95 µA	4.596 V	12 V	Surface Mount	6 ppm/¯C	125 °C	-40 °C		3 mm	0.118 in
Texas Instruments REF3450QDGKRQ1	3.8 µVp-p 19 µVp-p 24 µVrms	Series	0.05 %	Fixed	AEC-Q100	8-TSSOP 8-MSOP 8-VSSOP	Automotive	10 mA	5 V	95 µA	5.5 V	12 V	Surface Mount	6 ppm/¯C	125 °C	-40 °C		3 mm	0.118 in
Texas Instruments REF3433QDGKRQ1	5 µVp-p 24 µVrms	Series	0.05 %	Fixed	AEC-Q100	8-TSSOP 8-MSOP 8-VSSOP	Automotive	10 mA	3.3 V	95 µA	3.8 V	12 V	Surface Mount	6 ppm/¯C	125 °C	-40 °C		3 mm	0.118 in
