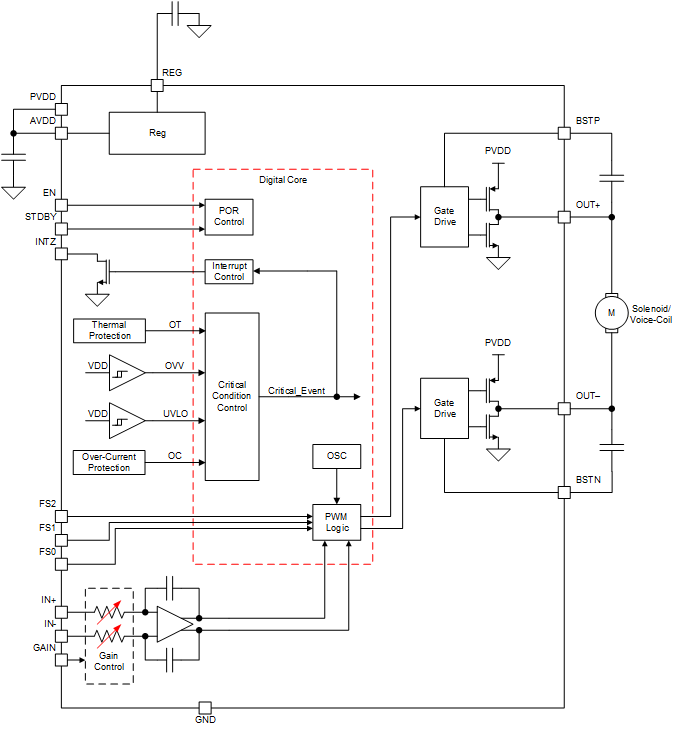

DRV2511 Series
Manufacturer: Texas Instruments
Beta
⌘K
EVALUATION MODULE
| Part | Supplied Contents | Utilized IC / Part | Contents | Function | Type | Grade | Package Name | Operating Temperature (Max) | Operating Temperature (Min) | Half-Bridge Count | Output Configuration | Qualification | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Current - Output | Applications | Motor Type - AC, DC | Interface | Technology | Package Width | Package Length | Mounting Type | Voltage - Load (Min) | Voltage - Load (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) | DRV2511-Q1 | Board | Haptic/Vibration Motor Controller/Driver | Power Management | |||||||||||||||||||
 Texas Instruments | Control and Power Stage Driver - Fully Integrated | Automotive | 32-HTSSOP 32-PowerTSSOP | 125 °C | -40 °C | 2 | Half Bridge | AEC-Q100 | 26 V | 4.5 V | 8 A | Haptic Feedback | Voice Coil Motor | On/Off | Power MOSFET | 6.1 mm | 0.24 in | Surface Mount | 4.5 V | 26 V |
