LMK04906 Series
Manufacturer: Texas Instruments
Beta
⌘K

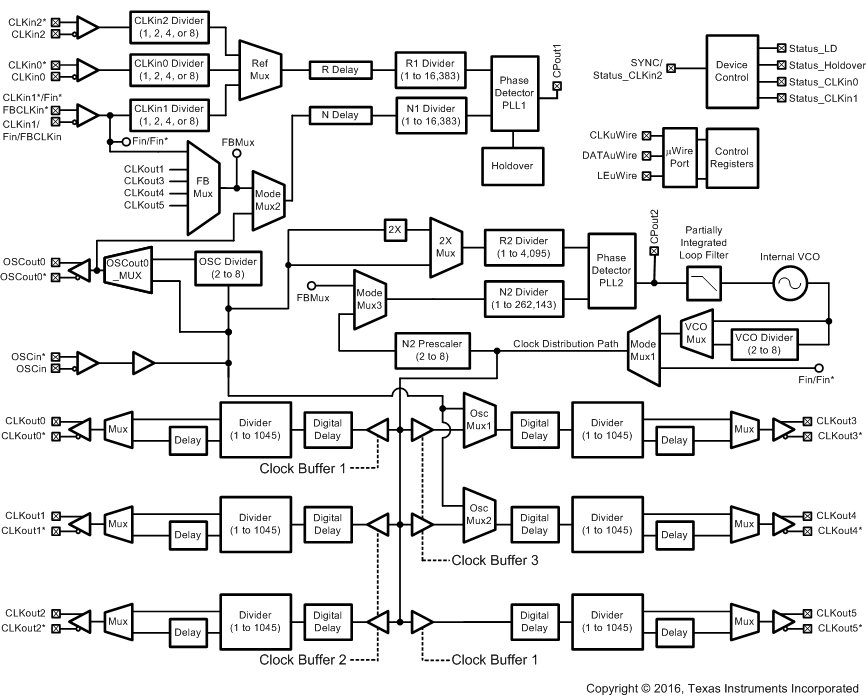

ULTRA LOW NOISE CLOCK JITTER CLEANER/MULTIPLIER WITH 6 PROGRAMMABLE OUTPUTS
| Part | Mounting Type | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Output Ratio | Input Ratio | Number of Circuits | Multiplier | Divider | Frequency - Max | PLL | Operating Temperature (Min) | Operating Temperature (Max) | Output | Differential Input | Differential Output | Package / Case | Package Width | Package Name | Package Length | Input | Supplied Contents | Type | Contents | Function | Utilized IC / Part | Primary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Surface Mount | 3.15 V | 3.45 V | 6 | 3 | 1 | No | Yes | 2.6 GHz | Yes | -40 °C | 85 °C | LVCMOS LVDS LVPECL | Yes | Yes | 64-WFQFN Exposed Pad | 9 mm | 64-WQFN | 9 mm | LVCMOS LVDS LVPECL | ||||||
 Texas Instruments | Surface Mount | 3.15 V | 3.45 V | 6 | 3 | 1 | No | Yes | 2.6 GHz | Yes | -40 °C | 85 °C | LVCMOS LVDS LVPECL | Yes | Yes | 64-WFQFN Exposed Pad | 9 mm | 64-WQFN | 9 mm | LVCMOS LVDS LVPECL | ||||||

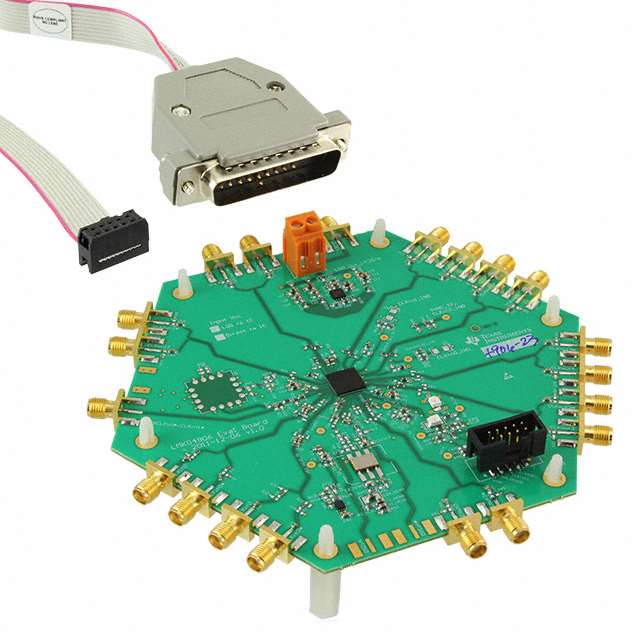

 Texas Instruments | Board(s) | Timing | Board | Clock Conditioner | LMK04906 | Jitter Cleaner | ||||||||||||||||||||
 Texas Instruments | Surface Mount | 3.15 V | 3.45 V | 6 | 3 | 1 | No | Yes | 2.6 GHz | Yes | -40 °C | 85 °C | LVCMOS LVDS LVPECL | Yes | Yes | 64-WFQFN Exposed Pad | 9 mm | 64-WQFN | 9 mm | LVCMOS LVDS LVPECL |
