DRV8881 Series

Catalog

EVALUATION MODULE DRV8881

Part	Supplied Contents	Embedded Bit Width	Embedded	Contents	Primary Attributes	Type	Function	Utilized IC / Part	Secondary Attributes	Package Name	Current - Output	Package Width	Package Length	Operating Temperature (Min)	Operating Temperature (Max)	Technology	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Interface	Voltage - Load (Min)	Voltage - Load (Max)	Half-Bridge Count	Output Configuration	Motor Type - AC, DC	Mounting Type	Applications	Motor Type - Stepper	Package / Case
Texas Instruments DRV8881PEVM	Board(s)	16 bit	MCU Yes	Board	Dual Full-Bridge (H-Bridge) Driver	Power Management	Driver Motor Controller	DRV8881P	Graphical User Interface (GUI)
Texas Instruments DRV8881PPWP							Control and Power Stage Driver - Fully Integrated			28-HTSSOP 28-PowerTSSOP	1.4 A	4.4 mm	0.173 in	-40 °C	150 °C	Power MOSFET	6.5 VDC	45 V	Parallel	6.5 V	45 V	4	Half Bridge	Brushed DC	Surface Mount	General Purpose	Bipolar
Texas Instruments DRV8881ERHRR							Control and Power Stage Driver - Fully Integrated			28-WQFN	1.4 A	3.5 mm	5.5 mm	-40 °C	150 °C	Power MOSFET	6.5 VDC	45 V	Parallel	6.5 V	45 V	4	Half Bridge	Brushed DC	Surface Mount	General Purpose	Bipolar	28-WFQFN Exposed Pad

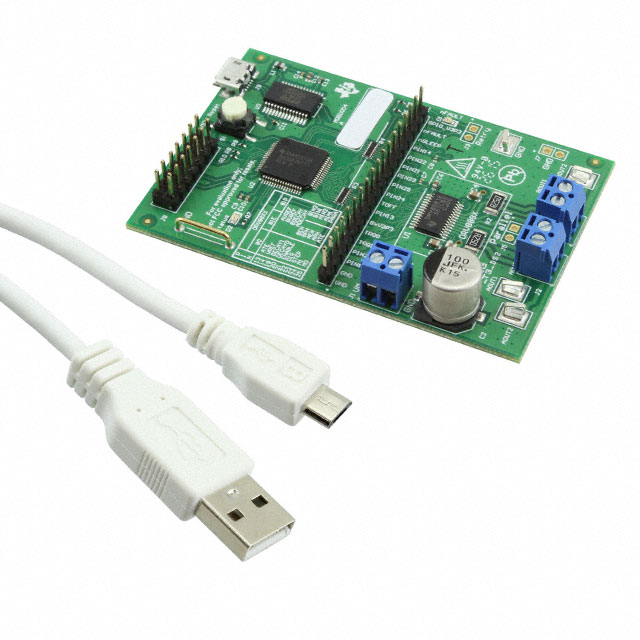

Texas Instruments DRV8881EEVM	Board(s)	16 bit	MCU Yes	Board	Dual Full-Bridge (H-Bridge) Driver	Power Management	Driver Motor Controller	DRV8881E	Graphical User Interface (GUI)
Texas Instruments DRV8881PRHRR							Control and Power Stage Driver - Fully Integrated			28-WQFN	1.4 A	3.5 mm	5.5 mm	-40 °C	150 °C	Power MOSFET	6.5 VDC	45 V	Parallel	6.5 V	45 V	4	Half Bridge	Brushed DC	Surface Mount	General Purpose	Bipolar	28-WFQFN Exposed Pad
Texas Instruments DRV8881PPWPR							Control and Power Stage Driver - Fully Integrated			28-HTSSOP 28-PowerTSSOP	1.4 A	4.4 mm	0.173 in	-40 °C	150 °C	Power MOSFET	6.5 VDC	45 V	Parallel	6.5 V	45 V	4	Half Bridge	Brushed DC	Surface Mount	General Purpose	Bipolar
Texas Instruments DRV8881ERHRT							Control and Power Stage Driver - Fully Integrated			28-WQFN	1.4 A	3.5 mm	5.5 mm	-40 °C	150 °C	Power MOSFET	6.5 VDC	45 V	Parallel	6.5 V	45 V	4	Half Bridge	Brushed DC	Surface Mount	General Purpose	Bipolar	28-WFQFN Exposed Pad
Texas Instruments DRV8881EPWPR							Control and Power Stage Driver - Fully Integrated			28-HTSSOP 28-PowerTSSOP	1.4 A	4.4 mm	0.173 in	-40 °C	150 °C	Power MOSFET	6.5 VDC	45 V	Parallel	6.5 V	45 V	4	Half Bridge	Brushed DC	Surface Mount	General Purpose	Bipolar
Texas Instruments DRV8881EPWP							Control and Power Stage Driver - Fully Integrated			28-HTSSOP 28-PowerTSSOP	1.4 A	4.4 mm	0.173 in	-40 °C	150 °C	Power MOSFET	6.5 VDC	45 V	Parallel	6.5 V	45 V	4	Half Bridge	Brushed DC	Surface Mount	General Purpose	Bipolar
Texas Instruments DRV8881PRHRT							Control and Power Stage Driver - Fully Integrated			28-WQFN	1.4 A	3.5 mm	5.5 mm	-40 °C	150 °C	Power MOSFET	6.5 VDC	45 V	Parallel	6.5 V	45 V	4	Half Bridge	Brushed DC	Surface Mount	General Purpose	Bipolar	28-WFQFN Exposed Pad
