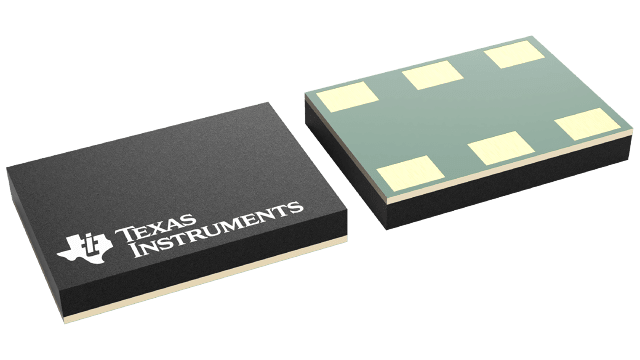

LMK60E0-156M Series

156.5-MHz, LVPECL, ±25 ppm, high-performance, low-jitter oscillator

Catalog

156.5-MHz, LVPECL, ±25 ppm, high-performance, low-jitter oscillator

Part	Package Length	Package Name	Package Width	Function	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Voltage - Supply	Package / Case	Output	Height - Seated (Max)	Type	Base Resonator	Current - Supply (Max)	Size / Dimension Width	Size / Dimension Length	Frequency Stability	Frequency
Texas Instruments LMK60E0-156M25SIAT	7 mm	6-QFM	5 mm	Disable Enable	-40 °C	85 °C	Surface Mount	3.3 V	6-SMD Module	LVPECL	0.045 in	XO (Standard)	Silicon	110 mA	0.197 in	0.276 in	25 ppm	156.25 MHz

Catalog

156.5-MHz, LVPECL, ±25 ppm, high-performance, low-jitter oscillator

Description

The LMK60EX is a family of low jitter oscillators that generate a commonly used reference clock. The device is pre-programmed in factory to support any reference clock frequency; supported output formats are LVPECL, LVDS, and HCSL up to 400 MHz. Internal power conditioning provide excellent power supply ripple rejection (PSRR), reducing the cost and complexity of the power delivery network. The device operates from a single 3.3-V ±5% supply. The LMK60EX is a family of low jitter oscillators that generate a commonly used reference clock. The device is pre-programmed in factory to support any reference clock frequency; supported output formats are LVPECL, LVDS, and HCSL up to 400 MHz. Internal power conditioning provide excellent power supply ripple rejection (PSRR), reducing the cost and complexity of the power delivery network. The device operates from a single 3.3-V ±5% supply.
