ADS9110 Series
Manufacturer: Texas Instruments
Beta
⌘K

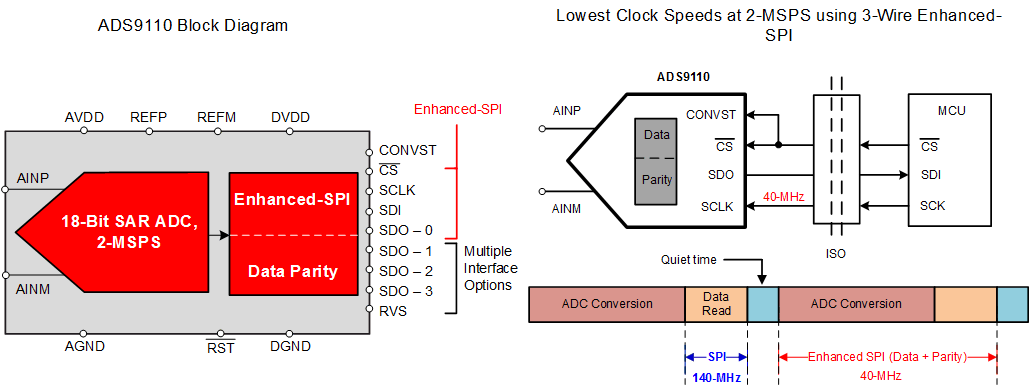

18-BIT, 2-MSPS, ONE-CHANNEL SAR ADC WITH ENHANCED SERIAL PERIPHERAL INTERFACE (SPI)
| Part | Number of Bits | Package Length | Package Name | Package Width | Mounting Type | Package / Case | Sampling Rate (Per Second) | Utilized IC / Part | Number of A/D Converters | Input Range | Power (Typ) | Data Interface | Contents | Voltage - Supply, Digital (Max) | Voltage - Supply, Digital (Min) | Input Type | Architecture | Number of Inputs | Ratio - ADC | Ratio - S/H | Voltage - Supply, Analog (Max) | Voltage - Supply, Analog (Min) | Operating Temperature (Min) | Operating Temperature (Max) | Configuration | Reference Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 18 bits | 4 mm | 24-VQFN | 4 mm | Surface Mount | 24-VFQFN Exposed Pad | ||||||||||||||||||||

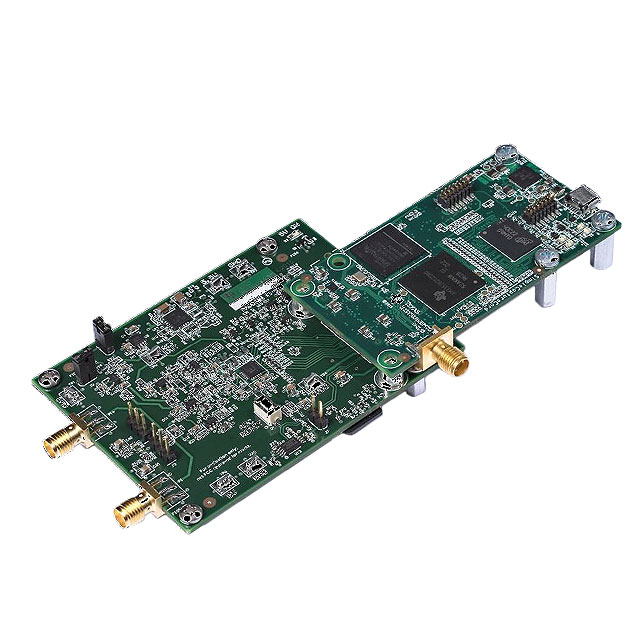

 Texas Instruments | 18 bits | 2 MHz | ADS9110 | 1 count | ±VREF | 15 mW | Serial | Board Cable | ||||||||||||||||||
Texas Instruments | 18 bits | 4 mm | 24-VQFN | 4 mm | Surface Mount | 24-VFQFN Exposed Pad | 2 MHz | 1 count | SPI | 1.95 V | 1.65 V | Differential | SAR | 1 | 1 | 1 | 1.95 V | 1.65 V | -40 °C | 85 °C | S/H-ADC | External |
