LME49710 Series

Catalog

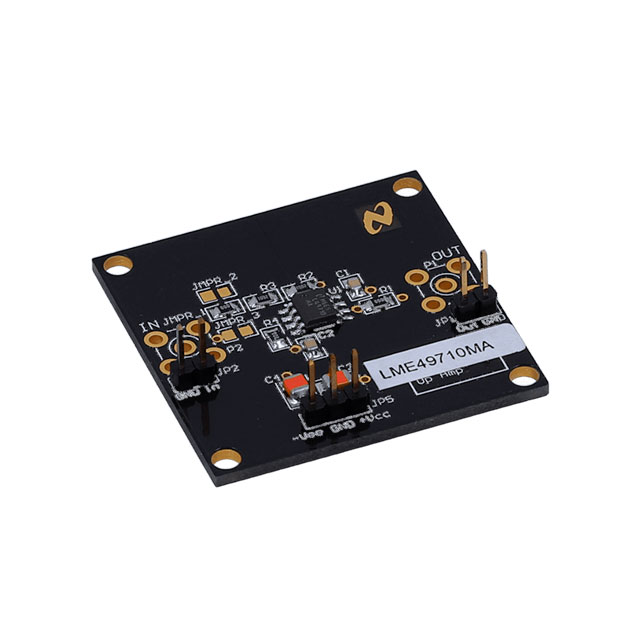

BOARD EVALUATION LME49710MA

Part	Current - Output / Channel	Current - Supply (Main IC)	Supplied Contents	Board Type	Channels per IC (Single)	Channels per IC (Type)	Channels per IC (Count)	Amplifier Type	Contents	Slew Rate	Output Type	Gain Bandwidth Product	Utilized IC / Part	Supply Configuration	Voltage - Supply (Dual) Maximum (Magnitude)	Voltage - Supply (Dual) Minimum (Magnitude)	Current - Input Bias	Mounting Type	Voltage - Input Offset	Current - Supply	Package Name	Voltage - Supply Span (Min)	Package Length	Package Width	Number of Circuits	Voltage - Supply Span (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case
Texas Instruments LME49710MABD	26 mA	0.0048 mA	Board(s)	Fully Populated	1	Single	1	Audio	Board	20 V/µs	Single-Ended	55 MHz	LME49710	Dual Single	17 V	2.5 V
Texas Instruments LME49710MAX/NOPB	26 mA							Audio		20 V/µs		55 MHz					7 nA	Surface Mount	50 µV	4.8 mA	8-SOIC	5 V	0.154 in	3.9 mm	1	34 V	-40 °C	85 °C
Texas Instruments LME49710NABD	26 mA	0.0048 mA	Board(s)	Fully Populated	1	Single	1	Audio	Board	20 V/µs	Single-Ended	55 MHz	LME49710	Dual Single	17 V	2.5 V
Texas Instruments LME49710HA/NOPB	26 mA							Audio		20 V/µs		55 MHz					7 nA	Through Hole	50 µV	4.8 mA	TO-99-8	5 V			1	34 V	-40 °C	85 °C	TO-99-8 Metal Can
Texas Instruments LME49710HABD	26 mA	0.0048 mA	Board(s)	Fully Populated	1	Single	1	Audio	Board	20 V/µs	Single-Ended	55 MHz	LME49710	Dual Single	17 V	2.5 V
Texas Instruments LME49710NA/NOPB	26 mA							Audio		20 V/µs		55 MHz					7 nA	Through Hole	50 µV	4.8 mA	8-DIP 8-PDIP	5 V	0.3 in	7.62 mm	1	34 V	-40 °C	85 °C
