CC1314R10 Series
Manufacturer: Texas Instruments
Beta
⌘K

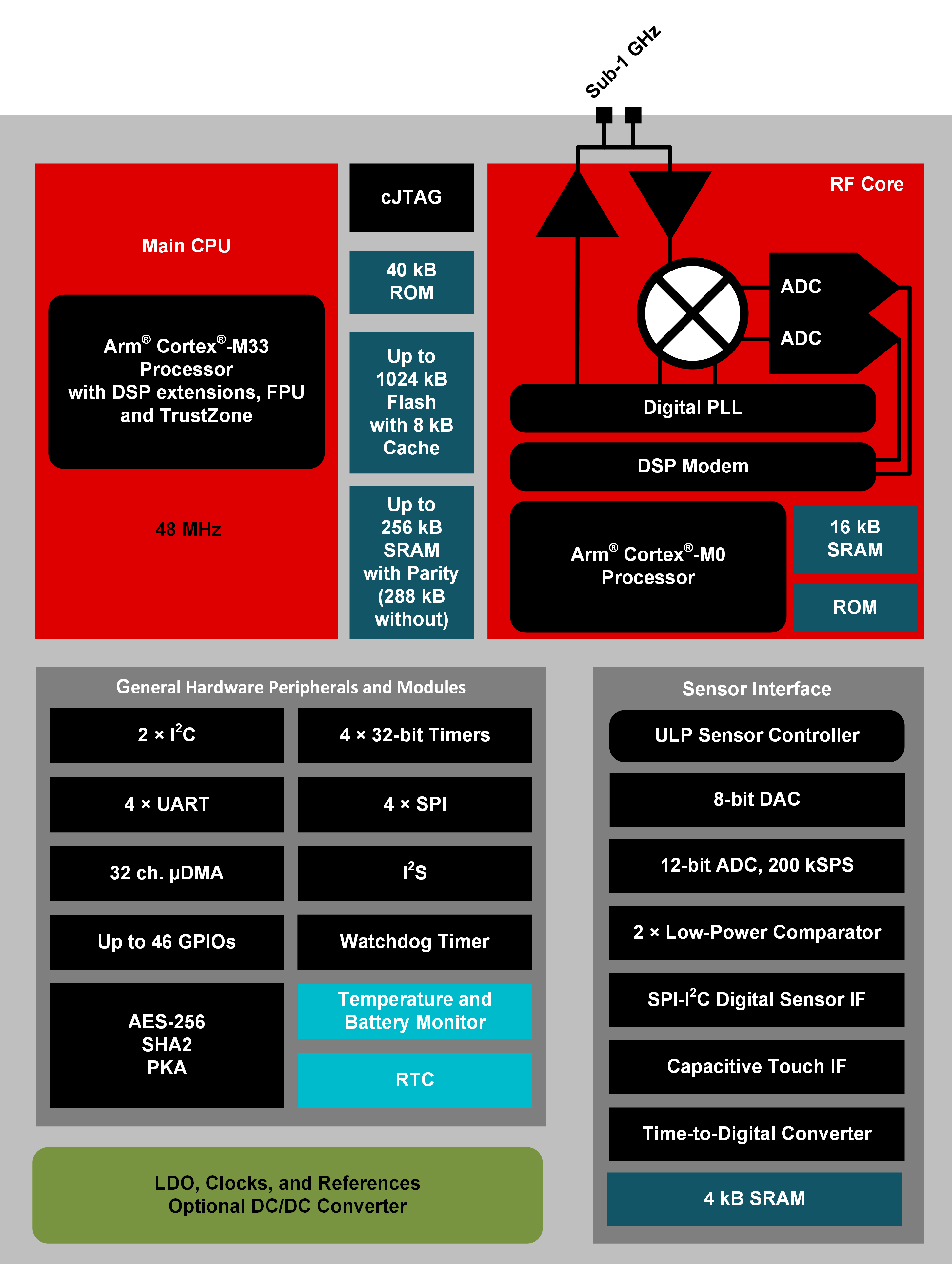

SIMPLELINK™ ARM® CORTEX®-M33 SUB-1 GHZ WIRELESS MCU WITH 1-MB FLASH AND UP TO 296 KB OF SRAM
| Part | Protocol | RF Family/Standard | Mounting Type | Memory Type | Memory Size (SRAM) | Memory Size (Flash) | Memory Size (ROM) | Serial Interfaces | Modulation | Current - Receiving | Sensitivity | Current - Transmitting | Frequency (Max) | Frequency (Min) | Data Rate (Max) | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Power - Output | GPIO Count | Package Length | Package Name | Package Width | Type | Package / Case | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Bluetooth v5.3 Wireless M-Bus Zigbee® | 802.15.4 Bluetooth | Surface Mount | Flash ROM SRAM | 256 kB | 1 MB | 40 kB | GPIO I2C I2S JTAG SPI UART | DSSS GFSK MSK O-QPSK | 5.8 mA | -121 dBm | 25.8 mA | 1.315 GHz | 287 MHz | 50 kBaud | 1.8 V | 3.8 V | 12 dBm | 30 | 7 mm | 48-VQFN | 7 mm | TxRx + MCU | 48-VFQFN Exposed Pad | 105 °C | -40 °C |
 Texas Instruments | Bluetooth v5.3 Wireless M-Bus Zigbee® | 802.15.4 Bluetooth | Surface Mount | Flash ROM SRAM | 256 kB | 1 MB | 40 kB | GPIO I2C I2S JTAG SPI UART | DSSS GFSK MSK O-QPSK | 5.8 mA | -121 dBm | 25.8 mA | 1.315 GHz | 287 MHz | 50 kBaud | 1.8 V | 3.8 V | 12 dBm | 46 | 8 mm | 64-VQFN | 8 mm | TxRx + MCU | 64-VFQFN Exposed Pad | 105 °C | -40 °C |
