74ALVCH16260 Series

Catalog

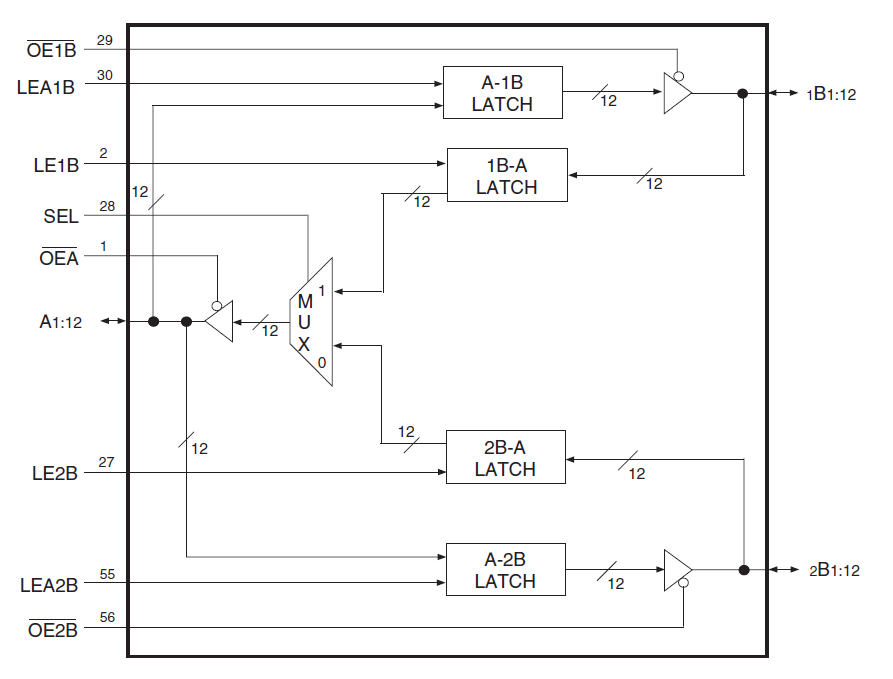

3.3V CMOS 12-BIT TO 24-BIT MULTIPLEXED D-TYPE LATCH WITH 3-STATE OUTPUTS, BUS-HOLD

Part	Output Type	Current - Output Low	Current - Output High	Circuit	Delay Time - Propagation	Package Name	Independent Circuits	Logic Type	Package Length	Package Width	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type
Renesas Electronics Corporation 74ALVCH16260PAG	Tri-State	24 mA	24 mA	12:24	1 ns	56-TFSOP 56-TSSOP	1	D-Type Transparent Latch	0.24 in	6.1 mm	3.6 V	2.3 V	-40 °C	85 °C	Surface Mount
Renesas Electronics Corporation 74ALVCH16260PAG8	Tri-State	24 mA	24 mA	12:24	1 ns	56-TFSOP 56-TSSOP	1	D-Type Transparent Latch	0.24 in	6.1 mm	3.6 V	2.3 V	-40 °C	85 °C	Surface Mount
