LM3463 Series

Catalog

6-CHANNEL HIGH-VOLTAGE, CONSTANT CURRENT LED DRIVER WITH DYNAMIC HEADROOM CONTROL

Part	Internal Switch(s)	Mounting Type	Package / Case	Package Width	Package Name	Package Length	Operating Temperature (Max)	Operating Temperature (Min)	Type	Applications	Dimming	Voltage - Supply (Max)	Voltage - Supply (Min)	Topology	Frequency	Number of Outputs	Output Type	Total Output Count	Non-Isolated Output Count	Supplied Contents	Current - Output / Channel	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Utilized IC / Part	Voltage - Output	Features	Contents
Texas Instruments LM3463SQ/NOPB	No	Surface Mount	48-WFQFN Exposed Pad	7 mm	48-WQFN	7 mm	125 °C	-40 °C	Linear	Lighting	Analog PWM	95 V	12 V	Shift Register	1 MHz	6
Texas Instruments LM3463SQX/NOPB	No	Surface Mount	48-WFQFN Exposed Pad	7 mm	48-WQFN	7 mm	125 °C	-40 °C	Linear	Lighting	Analog PWM	95 V	12 V	Shift Register	1 MHz	6

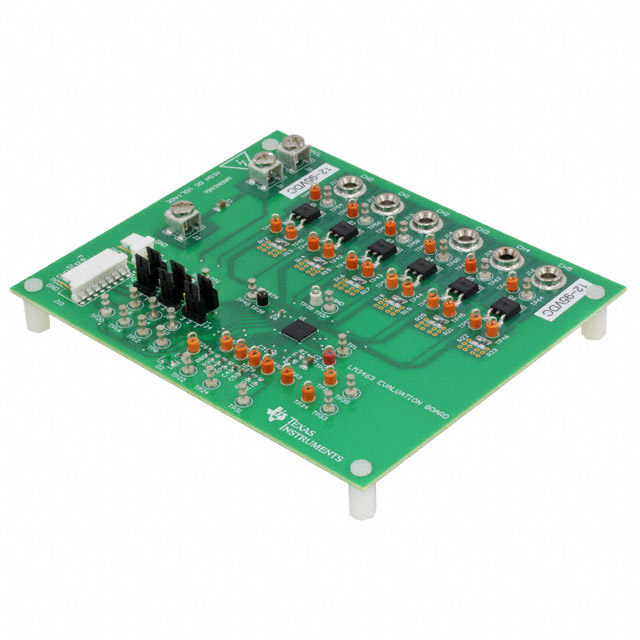

Texas Instruments LM3463EVM																	Non-Isolated	6	6	Board(s)	200 mA	95 V	12 V	LM3463	42 V	Dimmable	Board
