TPS54395 Series

Catalog

4.5V TO 18V INPUT, DUAL 3A OUTPUT, SYNCHRONOUS STEP-DOWN CONVERTER

Part	Voltage - Input (Min)	Current - Output	Topology	Operating Temperature (Max)	Operating Temperature (Min)	Number of Outputs	Package / Case	Output Type	Function	Package Width	Package Name	Package Length	Voltage - Input (Max)	Voltage - Output (Min/Fixed)	Voltage - Output (Max)	Frequency - Switching	Synchronous Rectifier	Mounting Type	Output Configuration	Total Output Count	Non-Isolated Output Count	Board Type	Supplied Contents	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Main Purpose	Current - Output (Min)	Current - Output (Max)	Voltage - Output	Contents	Utilized IC / Part	Regulator Topology
Texas Instruments TPS54395RSAT	4.5 V	3 A	Buck	85 °C	-40 °C	2	16-VQFN Exposed Pad	Adjustable	Step-Down	4 mm	16-QFN	4 mm	18 V	0.76 V	7 V	700 kHz	Yes	Surface Mount	Positive
Texas Instruments TPS54395RSAR	4.5 V	3 A	Buck	85 °C	-40 °C	2	16-VQFN Exposed Pad	Adjustable	Step-Down	4 mm	16-QFN	4 mm	18 V	0.76 V	7 V	700 kHz	Yes	Surface Mount	Positive
Texas Instruments TPS54395PWP	4.5 V	3 A	Buck	85 °C	-40 °C	2		Adjustable	Step-Down	4.4 mm	16-HTSSOP 16-PowerTSSOP	0.173 in	18 V	0.76 V	7 V	700 kHz	Yes	Surface Mount	Positive
Texas Instruments TPS54395PWPR	4.5 V	3 A	Buck	85 °C	-40 °C	2		Adjustable	Step-Down	4.4 mm	16-HTSSOP 16-PowerTSSOP	0.173 in	18 V	0.76 V	7 V	700 kHz	Yes	Surface Mount	Positive

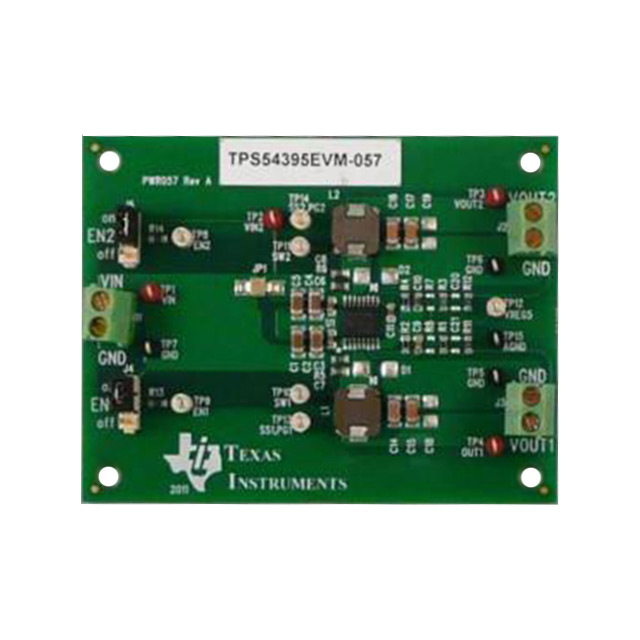

Texas Instruments TPS54395EVM-057								Non-Isolated								700 kHz				2	2 count	Fully Populated	Board(s)	5 V	18 V	DC/DC Step Down	3 A	3 A	1.5 V 3.3 V	Board	TPS54395	Buck
