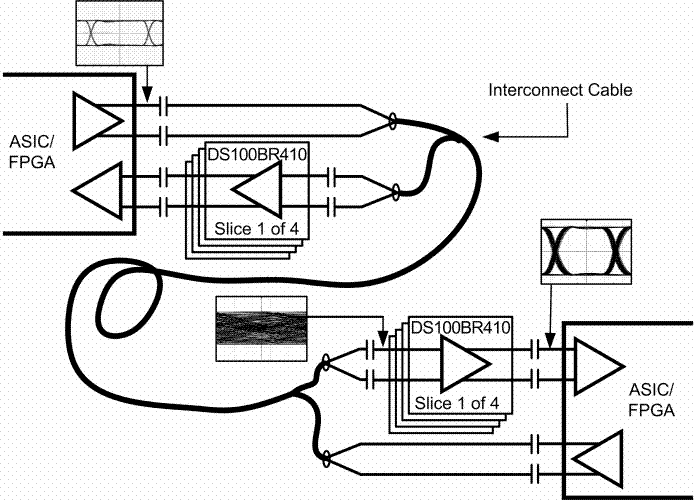

DS100BR410 Series

Catalog

EVAL KIT FOR DS100BR410

Part	Supplied Contents	Type	Primary Attributes	Function	Utilized IC / Part	Contents	Package Width	Package Name	Package Length	Data Rate (Max)	Number of Channels	Applications	Output	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Mounting Type	Input	Signal Conditioning	Delay Time	Capacitance - Input
Texas Instruments DS100BR410EVK-2/NOPB	Board(s)	Interface	Quad Channel Repeater	Buffer Repeater	DS100BR410	Board
Texas Instruments DS100BR410SQE/NOPB		Buffer ReDriver					7 mm	48-WQFN	7 mm	10.3 Gbps	4	SATA	CML	48-WFQFN Exposed Pad	-40 °C	85 °C	2.625 V	2.375 V	Surface Mount	CML	Input Equalization Output De-Emphasis
Texas Instruments DS100BR410SQX/NOPB		Buffer ReDriver					7 mm	48-WQFN	7 mm	10.3 Gbps	4	SATA	CML	48-WFQFN Exposed Pad	-40 °C	85 °C	2.625 V	2.375 V	Surface Mount	CML	Input Equalization Output De-Emphasis
Texas Instruments DS100BR410SQ/NOPB		Buffer ReDriver					7 mm	48-WQFN	7 mm	10.3 Gbps	4	SATA	CML	48-WFQFN Exposed Pad	-40 °C	85 °C	2.625 V	2.375 V	Surface Mount	CML	Input Equalization Output De-Emphasis	240 ps	10 pF
