TPS4H160 Series
Manufacturer: Texas Instruments
Beta
⌘K
40-V, 160-MΩ, 4-CH AUTOMOTIVE SMART HIGH-SIDE SWITCH WITH ADJUSTABLE CURRENT LIMIT
| Part | Package Name | Grade | Package Width | Package Length | Qualification | Number of Outputs | Mounting Type | Features | Switch Type | Input Type | Voltage - Load (Max) | Voltage - Load (Min) | Rds On (Typ) | Output Configuration | Interface | Operating Temperature (Max) | Operating Temperature (Min) | Output Ratio | Input Ratio | Voltage - Supply (Vdd/Vcc) | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Output Type | Fault Protection | Supplied Contents | Type | Function | Primary Attributes | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 28-HTSSOP 28-PowerTSSOP | Automotive | 4.4 mm | 0.173 in | AEC-Q100 | 4 | Surface Mount | Status Flag | General Purpose | Non-Inverting | 40 V | 3.4 V | 165 mOhm | High Side | On/Off | 125 °C | -40 °C | 1 | 1 | Not Required | Not Required | 2.5 A | N-Channel | Current Limiting (Fixed) Over Temperature | ||||||

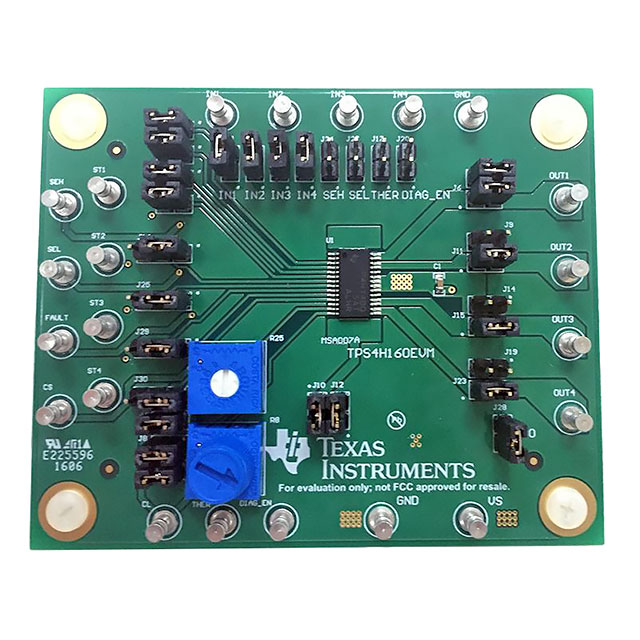

 Texas Instruments | Board(s) | Power Management | Power Distribution Switch (Load Switch) | 4-Channel (Quad) | Board | TPS4H160-Q1 | ||||||||||||||||||||||||
Texas Instruments | 28-HTSSOP 28-PowerTSSOP | Automotive | 4.4 mm | 0.173 in | AEC-Q100 | 4 | Surface Mount | Status Flag | General Purpose | Non-Inverting | 40 V | 3.4 V | 165 mOhm | High Side | On/Off | 125 °C | -40 °C | 1 | 1 | Not Required | Not Required | 2.5 A | N-Channel | Current Limiting (Fixed) Over Temperature |
