TMP303 Series

Catalog

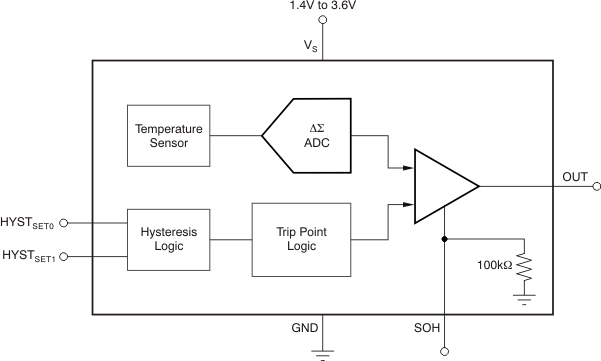

FACTORY PROGRAMMED TEMPERATURE WINDOW COMPARATOR

Part	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Output	Switching Temperature	Features	Package / Case	Current - Supply	Current - Output (Max)	Package Name	Operating Temperature (Max)	Operating Temperature (Min)	Output Function	Accuracy	Selectable Hysteresis	Mounting Type	Trip Temperature Threshold	Output Type	Switching Temperature (Options)
Texas Instruments TMP303EDRLT	1.4 V	3.6 V	Active High	70 °C	Selectable Hysteresis	SOT-563 SOT-666	4 µA	8 mA	SOT-5X3	125 °C	-40 °C	OverTemp	1 °C	Yes	Surface Mount	Hot	Push-Pull
Texas Instruments TMP303GDRLT	1.4 V	3.6 V	Active High	194 °F	Selectable Hysteresis	SOT-563 SOT-666	4 µA	8 mA	SOT-5X3	125 °C	-40 °C	OverTemp	1 °C	Yes	Surface Mount	Hot	Push-Pull
Texas Instruments TMP303EDRLR	1.4 V	3.6 V	Active High	70 °C	Selectable Hysteresis	SOT-563 SOT-666	4 µA	8 mA	SOT-5X3	125 °C	-40 °C	OverTemp	1 °C	Yes	Surface Mount	Hot	Push-Pull
Texas Instruments TMP303CDRLT	1.4 V	3.6 V	Active High	60 °C	Selectable Hysteresis	SOT-563 SOT-666	4 µA	8 mA	SOT-5X3	125 °C	-40 °C	OverTemp	1 °C	Yes	Surface Mount	Hot	Push-Pull
Texas Instruments TMP303CDRLR	1.4 V	3.6 V	Active High	60 °C	Selectable Hysteresis	SOT-563 SOT-666	4 µA	8 mA	SOT-5X3	125 °C	-40 °C	OverTemp	1 °C	Yes	Surface Mount	Hot	Push-Pull
Texas Instruments TMP303BDRLT	1.4 V	3.6 V	Active High	131 °F	Selectable Hysteresis	SOT-563 SOT-666	4 µA	8 mA	SOT-5X3	125 °C	-40 °C	OverTemp	1 °C	Yes	Surface Mount	Hot	Push-Pull
Texas Instruments TMP303ADRLT	1.4 V	3.6 V	Active High		Selectable Hysteresis	SOT-563 SOT-666	4 µA	8 mA	SOT-5X3	125 °C	-40 °C	OverTemp	0.2 °C	Yes	Surface Mount	Hot	Push-Pull	Programmable
Texas Instruments TMP303GDRLR	1.4 V	3.6 V	Active High	194 °F	Selectable Hysteresis	SOT-563 SOT-666	4 µA	8 mA	SOT-5X3	125 °C	-40 °C	OverTemp	1 °C	Yes	Surface Mount	Hot	Push-Pull
Texas Instruments TMP303FDRLT	1.4 V	3.6 V	Active High	80 °C	Selectable Hysteresis	SOT-563 SOT-666	4 µA	8 mA	SOT-5X3	125 °C	-40 °C	OverTemp	1 °C	Yes	Surface Mount	Hot	Push-Pull
Texas Instruments TMP303DDRLT	1.4 V	3.6 V	Active High	257 °F	Selectable Hysteresis	SOT-563 SOT-666	4 µA	8 mA	SOT-5X3	125 °C	-40 °C	OverTemp	0.2 °C	Yes	Surface Mount	Hot	Push-Pull
