LM4860 Series

Catalog

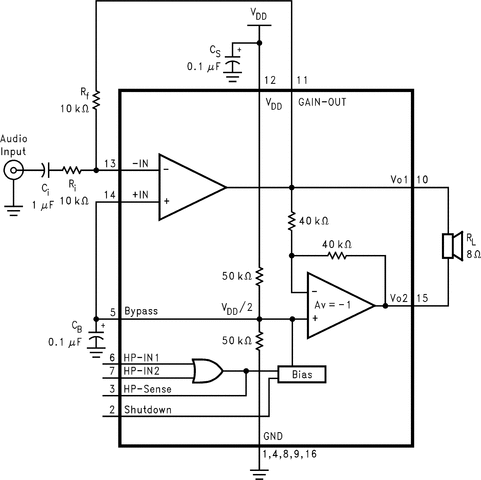

1-W, MONO, ANALOG INPUT CLASS-AB AUDIO AMPLIFIER WITH HEADPHONE SENSE

Part	Operating Temperature (Max)	Operating Temperature (Min)	Package Width	Package Name	Package Length	Mounting Type	Channels	Maximum Output Power (per Channel)	Load Impedance	Features	Output Type	Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)
Texas Instruments LM4860M	85 °C	-20 °C	3.9 mm	16-SOIC	0.154 in	Surface Mount	1	1.15 W	8 Ohm	Shutdown Thermal Protection	1-Channel (Mono)	Class AB	5.5 V	2.7 V
Texas Instruments LM4860M	85 °C	-20 °C	3.9 mm	16-SOIC	0.154 in	Surface Mount	1	1.15 W	8 Ohm	Shutdown Thermal Protection	1-Channel (Mono)	Class AB	5.5 V	2.7 V
Texas Instruments LM4860MX	85 °C	-20 °C	3.9 mm	16-SOIC	0.154 in	Surface Mount	1	1.15 W	8 Ohm	Shutdown Thermal Protection	1-Channel (Mono)	Class AB	5.5 V	2.7 V
Texas Instruments LM4860MX/NOPB	85 °C	-20 °C	3.9 mm	16-SOIC	0.154 in	Surface Mount	1	1.15 W	8 Ohm	Shutdown Thermal Protection	1-Channel (Mono)	Class AB	5.5 V	2.7 V
Texas Instruments LM4860M/NOPB	85 °C	-20 °C	3.9 mm	16-SOIC	0.154 in	Surface Mount	1	1.15 W	8 Ohm	Shutdown Thermal Protection	1-Channel (Mono)	Class AB	5.5 V	2.7 V
