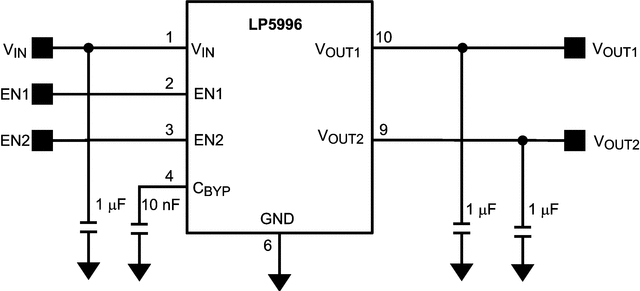

LP5996 Series

Catalog

IC REG LINEAR 2.5V/3.3V 10SON

Part	Voltage Dropout (Max)	Voltage Dropout (Max) (Alt)	Control Features	Package Width	Package Name	Package Length	Current - Supply (Max)	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Output Configuration	Voltage - Input (Max)	Current - Output (Min)	Current - Output (Max)	Mounting Type	Protection Features	Current - Quiescent (Iq)	Output Type	Voltage - Output (Fixed)	Voltage - Output (Min)	PSRR (Maximum)	PSRR (Minimum)	Number of Regulators	Voltage - Output (Min/Fixed)
Texas Instruments LP5996SDX-2533/NOPB	0.22 V	0.55 V	Enable	3 mm	10-SON	3 mm	170 µA	10-WFDFN Exposed Pad	-40 °C	85 °C	Positive	6 V	0.15 A	300 mA	Surface Mount	Over Temperature Short Circuit	110 µA	Fixed	3.3 V	2.5 V	58 dB 70 dB	45 dB 60 dB	2
Texas Instruments LP5996SD-3308/NOPB	0.22 V	0.55 V	Enable	3 mm	10-SON	3 mm	170 µA	10-WFDFN Exposed Pad	-40 °C	85 °C	Positive	6 V	0.15 A	300 mA	Surface Mount	Over Temperature Short Circuit	110 µA	Fixed	0.8 V	3.3 V	58 dB 70 dB	45 dB 60 dB	2
Texas Instruments LP5996SD-3033/NOPB	0.22 V	0.55 V	Enable	3 mm	10-SON	3 mm	170 µA	10-WFDFN Exposed Pad	-40 °C	85 °C	Positive	6 V	0.15 A	300 mA	Surface Mount	Over Temperature Short Circuit	110 µA	Fixed	3.3 V	3 V	58 dB 70 dB	45 dB 60 dB	2
Texas Instruments LP5996SD-1525/NOPB	0.55 V		Enable	3 mm	10-SON	3 mm	170 µA	10-WFDFN Exposed Pad	-40 °C	85 °C	Positive	6 V	0.15 A	300 mA	Surface Mount	Over Temperature Short Circuit	110 µA	Fixed	2.5 V	1.5 V	58 dB 70 dB	45 dB 60 dB	2
Texas Instruments LP5996SD-3030/NOPB	0.22 V	0.55 V	Enable	3 mm	10-SON	3 mm	170 µA	10-WFDFN Exposed Pad	-40 °C	85 °C	Positive	6 V	0.15 A	300 mA	Surface Mount	Over Temperature Short Circuit	110 µA	Fixed			58 dB 70 dB	45 dB 60 dB	2	3 V
Texas Instruments LP5996SD-0833/NOPB	0.55 V		Enable	3 mm	10-SON	3 mm	170 µA	10-WFDFN Exposed Pad	-40 °C	85 °C	Positive	6 V	0.15 A	300 mA	Surface Mount	Over Temperature Short Circuit	110 µA	Fixed	3.3 V	0.8 V	58 dB 70 dB	45 dB 60 dB	2
Texas Instruments LP5996SD-1833/NOPB	0.55 V		Enable	3 mm	10-WSON	3 mm	170 µA	10-WFDFN Exposed Pad	-40 °C	85 °C	Positive	6 V	0.15 A	300 mA	Surface Mount	Over Temperature Short Circuit	110 µA	Fixed	3.3 V	1.8 V	58 dB 70 dB	45 dB 60 dB	2
Texas Instruments LP5996SDX-3033/NOPB	0.22 V	0.55 V	Enable	3 mm	10-SON	3 mm	170 µA	10-WFDFN Exposed Pad	-40 °C	85 °C	Positive	6 V	0.15 A	300 mA	Surface Mount	Over Temperature Short Circuit	110 µA	Fixed	3.3 V	3 V	58 dB 70 dB	45 dB 60 dB	2
Texas Instruments LP5996SD-3030/NOPB	0.22 V	0.55 V	Enable	3 mm	10-WSON	3 mm	170 µA	10-WFDFN Exposed Pad	-40 °C	85 °C	Positive	6 V	0.15 A	300 mA	Surface Mount	Over Temperature Short Circuit	110 µA	Fixed	3 V	3 V	58 dB 70 dB	45 dB 60 dB	2
Texas Instruments LP5996SDX-2828/NOPB	0.22 V	0.55 V	Enable	3 mm	10-SON	3 mm	170 µA	10-WFDFN Exposed Pad	-40 °C	85 °C	Positive	6 V	0.15 A	300 mA	Surface Mount	Over Temperature Short Circuit	110 µA	Fixed			58 dB 70 dB	45 dB 60 dB	2	2.8 V
