SN74AHC157-Q1 Series

Automotive quadruple 2-line to 1-line data selector/multiplexer

Catalog

Automotive quadruple 2-line to 1-line data selector/multiplexer

Part	Grade	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Voltage Supply Source	Independent Circuits	Type	Package / Case	Current - Output Low	Current - Output High	Circuit	Package Width	Package Name	Package Length	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Qualification

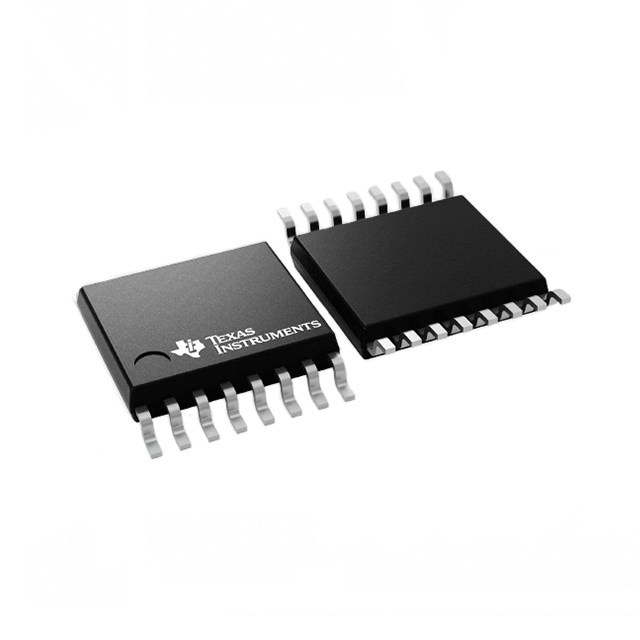

Texas Instruments SN74AHC157QWBQBRQ1	Automotive	5.5 V	2 V	Single Supply	1	Data Selector/Multiplexer	16-WFQFN Exposed Pad	8 mA	8 mA	4 x 2:1	3.5 mm	16-WQFN	2.5 mm	Surface Mount Wettable Flank	125 °C	-40 °C	AEC-Q100
Texas Instruments SN74AHC157QPWRQ1	Automotive	5.5 V	2 V	Single Supply	1	Data Selector/Multiplexer		8 mA	8 mA	4 x 2:1	4.4 mm	16-TSSOP	0.173 in	Surface Mount	125 °C	-40 °C	AEC-Q100
Texas Instruments CAHCT157QWBQBRQ1	Automotive	5.5 V	2 V	Single Supply	1	Data Selector/Multiplexer	16-WFQFN Exposed Pad	8 mA	8 mA	4 x 2:1	3.5 mm	16-WQFN	2.5 mm	Surface Mount Wettable Flank	125 °C	-40 °C	AEC-Q100

Catalog

Automotive quadruple 2-line to 1-line data selector/multiplexer

Description

The SN74AHC157-Q1 is a quadruple 2-line to 1-line data selectors/multiplexers are designed for 2-V to 5.5-V VCC operation. The SN74AHC157-Q1 devices feature a common strobe (G) input. When the strobe is high, all outputs are low. When the strobe is low, a 4-bit word is selected from one of two sources and is routed to the four outputs. The device provides true data. The SN74AHC157-Q1 is a quadruple 2-line to 1-line data selectors/multiplexers are designed for 2-V to 5.5-V VCC operation. The SN74AHC157-Q1 devices feature a common strobe (G) input. When the strobe is high, all outputs are low. When the strobe is low, a 4-bit word is selected from one of two sources and is routed to the four outputs. The device provides true data.
