TPA6040 Series

2-W, stereo Class-AB speaker & headphone amplifier, 4.75-V LDO & active low speaker enable

Catalog

2-W, stereo Class-AB speaker & headphone amplifier, 4.75-V LDO & active low speaker enable

Part	Supplied Contents	Board Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Contents	Amplifier Type	Maximum Output Power (per Channel)	Load Impedance	Channels	Utilized IC / Part	Output Type	Package / Case	Package Width	Package Name	Package Length	Features	Type	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)
Texas Instruments TPA6040A4EVM	Board(s)	Fully Populated	5.5 V	4.5 V	Board	Class AB	2.3 W 200 mW	4 Ohm 16 Ohm	2	TPA6040A4	2-Channel (Stereo) with Stereo Headphones
Texas Instruments TPA6040A4RHBR			5.5 V	4.5 V			2.3 W 200 mW	4 Ohm 16 Ohm	2		2-Channel (Stereo) with Stereo Headphones	32-VFQFN Exposed Pad	5 mm	32-VQFN	5 mm	Differential Inputs Short-Circuit and Thermal Protection Shutdown	Class AB	Surface Mount	85 °C	-40 °C

Catalog

2-W, stereo Class-AB speaker & headphone amplifier, 4.75-V LDO & active low speaker enable

Description

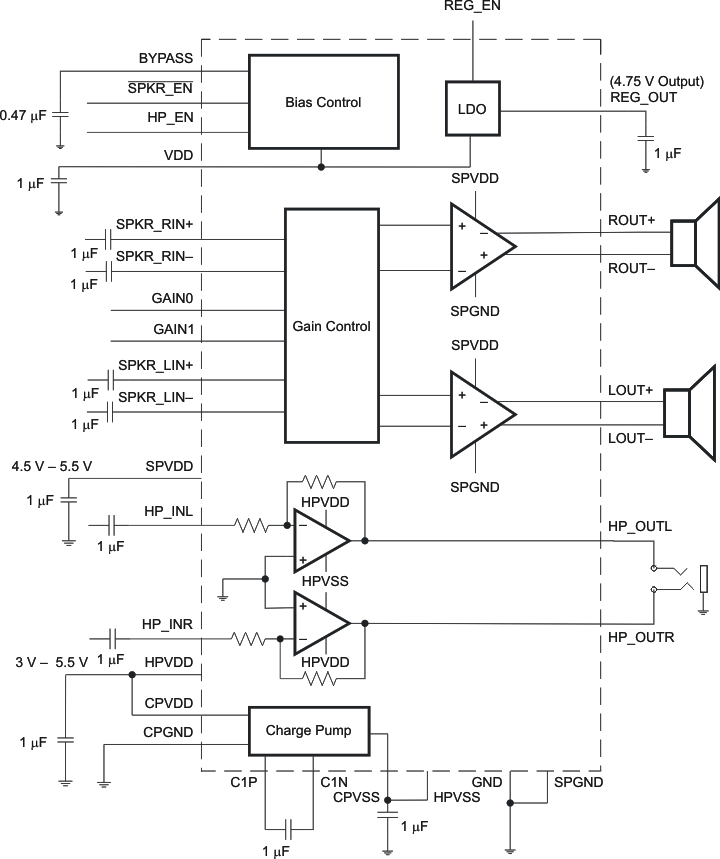

The TPA6040A4 is a stereo audio power amplifier and DirectPath™ headphone amplifier in a thermally enhanced, space-saving, 32-pin QFN package. The speaker amplifier is capable of driving 2 W per channel continuously into 4-loads at 5 V. The headphone amplifier achieves a minimum of 85 mW at 1% THD+N from a 5-V supply. A built-in internal 4-step gain control for the speaker amplifier and a fixed -1.5 V/V gain for the headphone amplifier minimizes external components needed. Independent shutdown control and dedicated inputs for the speaker and headphone allow the TPA6040A4 to simultaneously drive both headphones and internal speakers. Differential inputs to the speaker amplifiers offer superior power-supply and common-mode noise rejection. The TPA6040A4 is a stereo audio power amplifier and DirectPath™ headphone amplifier in a thermally enhanced, space-saving, 32-pin QFN package. The speaker amplifier is capable of driving 2 W per channel continuously into 4-loads at 5 V. The headphone amplifier achieves a minimum of 85 mW at 1% THD+N from a 5-V supply. A built-in internal 4-step gain control for the speaker amplifier and a fixed -1.5 V/V gain for the headphone amplifier minimizes external components needed. Independent shutdown control and dedicated inputs for the speaker and headphone allow the TPA6040A4 to simultaneously drive both headphones and internal speakers. Differential inputs to the speaker amplifiers offer superior power-supply and common-mode noise rejection.
