ADS131M03 Series

Catalog

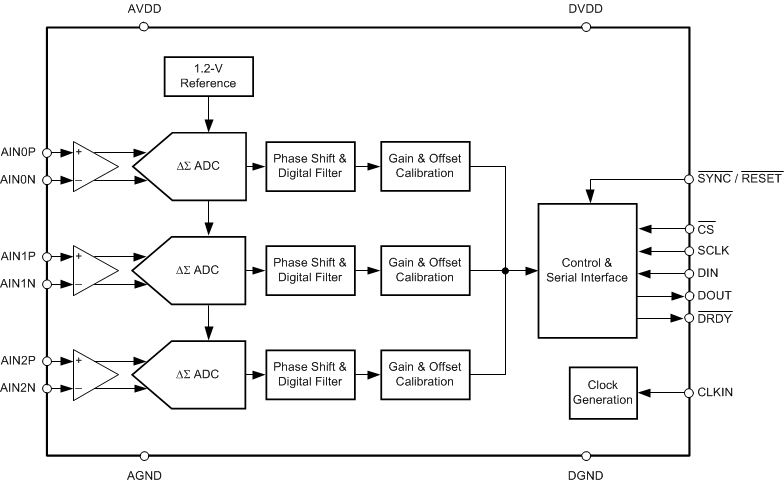

THREE-CHANNEL, 24-BIT, 64-KSPS, SIMULTANEOUS-SAMPLING, DELTA-SIGMA ADC

Part	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Number of Bits	Configuration	Architecture	Number of Inputs	Package / Case	Mounting Type	Input Type	Package Length	Package Name	Package Width	Ratio - ADC	Data Interface	Sampling Rate (Per Second)	Reference Type	Number of A/D Converters	Features	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)
Texas Instruments ADS131M03IRUKR	2.4 V	3.6 V	24 bits	PGA-ADC	Sigma-Delta	3	20-WFQFN Exposed Pad	Surface Mount	Differential	3 mm	20-WQFN	3 mm	3	Serial SPI	64 kHz	Internal	3 count	PGA Simultaneous Sampling	125 °C	-40 °C	1.65 V	3.6 V
Texas Instruments ADS131M03IPWR	2.4 V	3.6 V	24 bits	PGA-ADC	Sigma-Delta	3		Surface Mount	Differential	0.173 in	20-TSSOP	4.4 mm	3	Serial SPI	64 kHz	Internal	3 count	PGA Simultaneous Sampling	125 °C	-40 °C	1.65 V	3.6 V
Texas Instruments ADS131M03IRUKT	2.4 V	3.6 V	24 bits	PGA-ADC	Sigma-Delta	3	20-WFQFN Exposed Pad	Surface Mount	Differential	3 mm	20-WQFN	3 mm	3	Serial SPI	64 kHz	Internal	3 count	PGA Simultaneous Sampling	125 °C	-40 °C	1.65 V	3.6 V
Texas Instruments ADS131M03IPWT	2.4 V	3.6 V	24 bits	PGA-ADC	Sigma-Delta	3		Surface Mount	Differential	0.173 in	20-TSSOP	4.4 mm	3	Serial SPI	64 kHz	Internal	3 count	PGA Simultaneous Sampling	125 °C	-40 °C	1.65 V	3.6 V
